G915A (Standard) Connector End View (G915A)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPSW

Part Description: Not Available

Connector No: G915A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: G915a Connector End View (Standard)
GCWD1012209Courtesy of CHRYSLER
Fig 2: G915a Isometric View (Standard)
GCWD1013750Courtesy of CHRYSLER

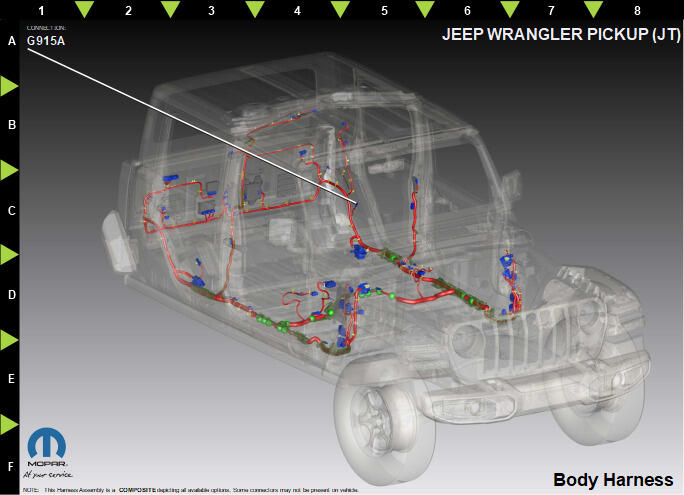

Fig 3: G915a Component Location View (Standard)
GCWD1318917Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z915 BK/YE 0.35 GROUND N/A
1 Z915 BK 0.35 GROUND N/A
1 Z915 BK/BU 0.50 GROUND N/A
