XY331A (Standard) Connector End View (X331A)

Harness-Family: Console

Color: BLACK

Gender: MALE

Part Number: 111188-6800

Part Description: Not Available

Connector No: X331A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Xy331a Connector End View (Standard)
GCWD1008074Courtesy of CHRYSLER
Fig 2: Xy331a Isometric View (Standard)
GCWD1010746Courtesy of CHRYSLER
Fig 3: Xy331a Wire Insertion View (Standard)
GCWD1009014Courtesy of CHRYSLER

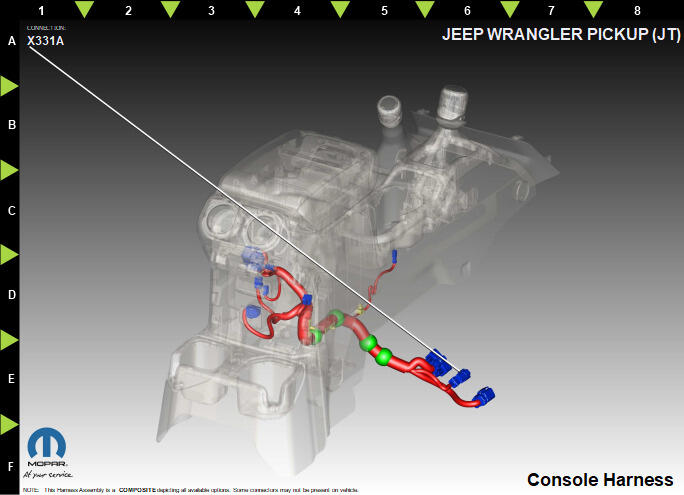

Fig 4: Xy331a Component Location View (Standard)
GCWD1318991Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 J3 BK 0.35 USB CABLE BASE
