Mirror-Inside Rearview (Standard) Connector End View (D6625A)

Harness-Family: Mirror

Color: GRAY

Gender: FEMALE

Part Number: 80024115A01A(002)

Part Description: Not Available

Connector No: D6625A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Mirror-Inside Rearview Connector End View (Standard)
GCWD1284527Courtesy of CHRYSLER
Fig 2: Mirror-Inside Rearview Isometric View (Standard)
GCWD1319087Courtesy of CHRYSLER
Fig 3: Mirror-Inside Rearview Wire Insertion View (Standard)
GCWD1318190Courtesy of CHRYSLER

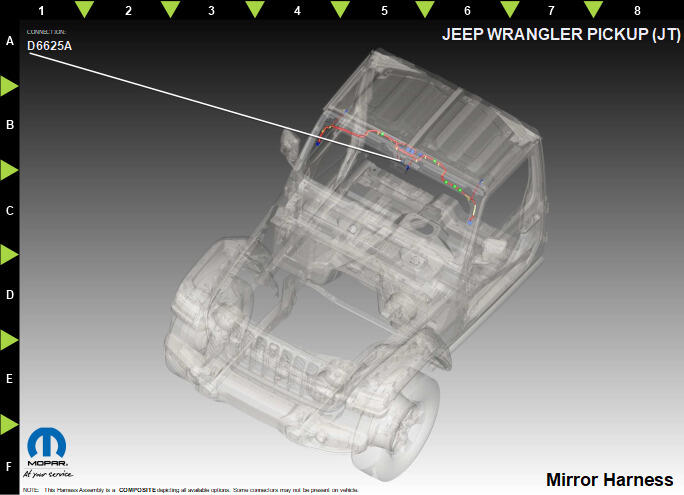

Fig 4: Mirror-Inside Rearview Component Location View (Standard)
GCWD1318966Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z910 BK 0.50 GROUND N/A
2 N0 NA 0 NO CONNECT N/A
3 D402 OG/VT 0.50 LIN BUS CBC 2 N/A
4 F982 PK/YE 0.50 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) N/A
