Lamp-Assembly Tail-Right (Standard) Connector End View (D6642A)

Harness-Family: Taillamp_Right

Color: BLACK

Gender: MALE

Part Number: 33482-6201

Part Description: Not Available

Connector No: D6642A

Option: Standard

Repair Kit Part Number: 68490386AA

Cavity Count: 12

Fig 1: Lamp-Assembly Tail-Right Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Lamp-Assembly Tail-Right Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Lamp-Assembly Tail-Right Wire Insertion View (Standard)

Courtesy of CHRYSLER

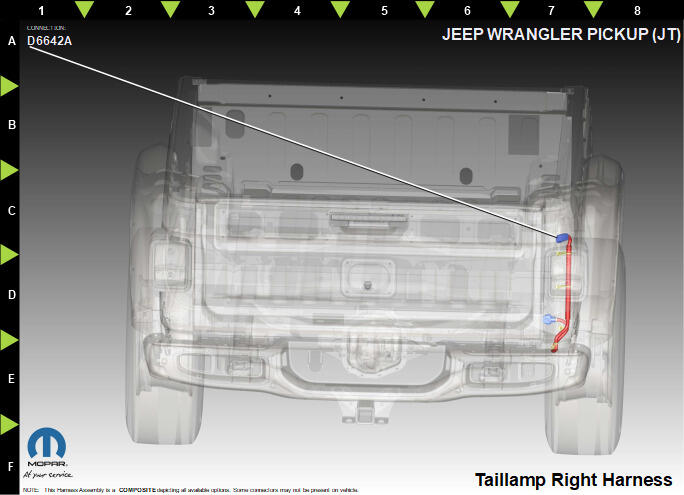

Fig 4: Lamp-Assembly Tail-Right Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L54	WH/GN	1.0	RIGHT STOP LAMP DRIVER	EXPORT
1	L6	GN	1.0	RIGHT STOP/TURN FEED	EXCEPT EXPORT
2	L144	BG/OG	1.0	RIGHT SIDE MARKER CONTROL	N/A
3	L62	WH/YE	1.0	RIGHT REAR TURN LAMP DRIVER	N/A
4	L72	WH/OG	1.0	RIGHT REAR PARK LAMP DRIVER	N/A
5	L16	WH/VT	1.0	RIGHT BACKUP LAMP DRIVER	N/A
6	Z926	BK	0.75	GROUND	EXCEPT EXPORT
6	Z926	BK	1.0	GROUND	EXPORT
7	Z926	BK	1.0	GROUND	N/A
8	L562	WH/BG	0.50	RIGHT REAR LIGHTING FAULT SENSE	N/A
9	F923	PK/YE	0.50	RUN RELAY CONTROL	N/A
10	D217	DG/WH	0.50	CAN IHS (+)	N/A
11	D218	WH	0.50	CAN IHS (-)	N/A
12	P712	GN/WH	0.50	RIGHT BLIND SPOT INDICATOR DRIVER	N/A
