Heater-Glass-Driver C2 (Standard) Connector End View (D6624D)

Harness-Family: Mirror_Driver

Color: NA

Gender: FEMALE

Part Number: 5450368750

Part Description: Not Available

Connector No: D6624D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Heater-Glass-Driver C2 Connector End View (Standard)
GCWD1238212Courtesy of CHRYSLER
Fig 2: Heater-Glass-Driver C2 Isometric View (Standard)
GCWD1315098Courtesy of CHRYSLER
Fig 3: Heater-Glass-Driver C2 Wire Insertion View (Standard)
GCWD1314672Courtesy of CHRYSLER

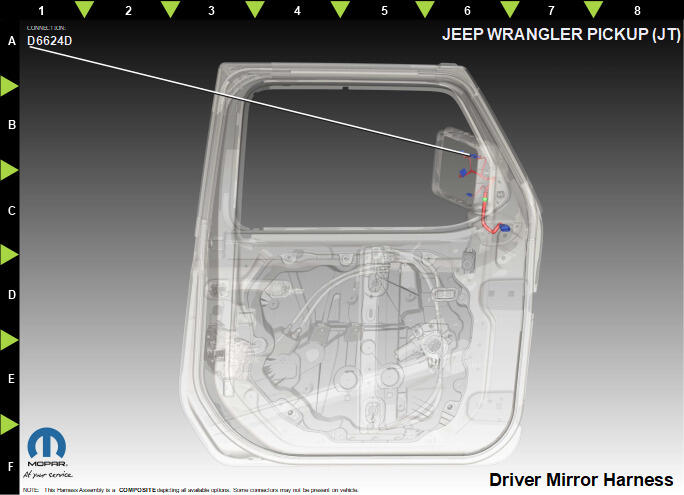

Fig 4: Heater-Glass-Driver C2 Component Location View (Standard)
GCWD1318276Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
2 Z911 BK 0.35 GROUND N/A
