G915B (Standard) Connector End View (G915B)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: MGT002BFLPSW

Part Description: Not Available

Connector No: G915B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: G915b Connector End View (Standard)
GCWD1081440Courtesy of CHRYSLER

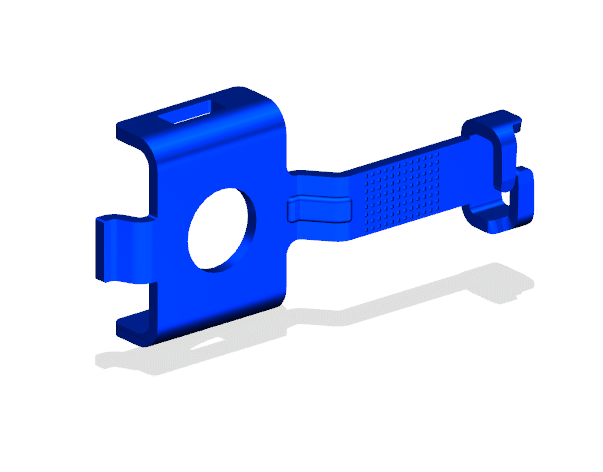

Fig 2: G915b Isometric View (Standard)
GCWD1087265Courtesy of CHRYSLER

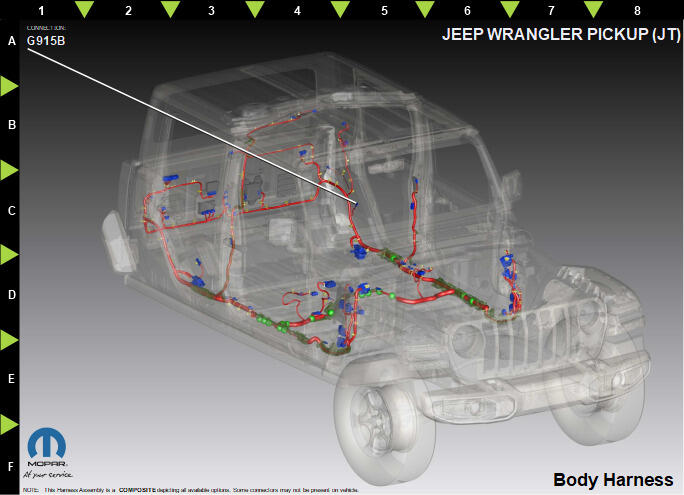

Fig 3: G915b Component Location View (Standard)
GCWD1318916Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z915 BK 2.5 GROUND N/A
