XY707A (Standard) Connector End View (X707A)

Harness-Family: Jumper_Bedlight_Left

Color: BLACK

Gender: FEMALE

Part Number: 805-120-531

Part Description: Not Available

Connector No: X707A

Option: Standard

Repair Kit Part Number: 68475547AA

Cavity Count: 2

Fig 1: Xy707a Connector End View (Standard)
GCWD1014078Courtesy of CHRYSLER
Fig 2: Xy707a Isometric View (Standard)
GCWD1012835Courtesy of CHRYSLER
Fig 3: Xy707a Wire Insertion View (Standard)
GCWD1006817Courtesy of CHRYSLER

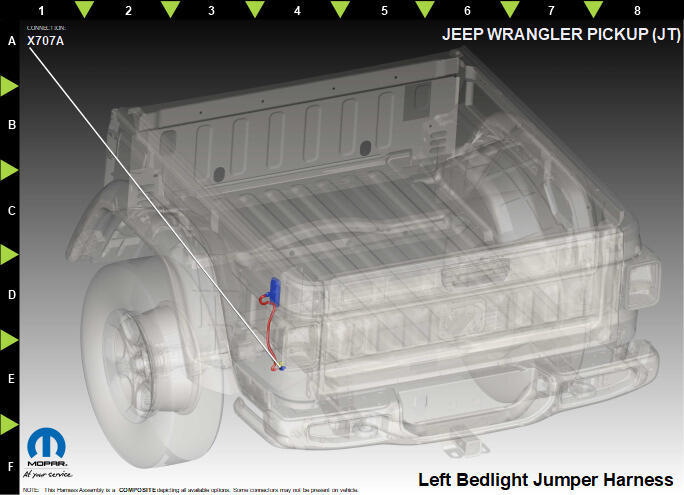

Fig 4: Xy707a Component Location View (Standard)
GCWD1319079Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 L19 BG 0.75 CARGO LAMP DRIVER N/A
2 Z925 BK 0.75 GROUND N/A
