XY422A (Standard) Connector End View (X422A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 1-2299071-1

Part Description: Not Available

Connector No: X422A

Option: Standard

Repair Kit Part Number: 68490832AA

Cavity Count: 2

Fig 1: Xy422a Connector End View (Standard)
GCWD1007284Courtesy of CHRYSLER
Fig 2: Xy422a Isometric View (Standard)
GCWD1009550Courtesy of CHRYSLER
Fig 3: Xy422a Wire Insertion View (Standard)
GCWD1008004Courtesy of CHRYSLER

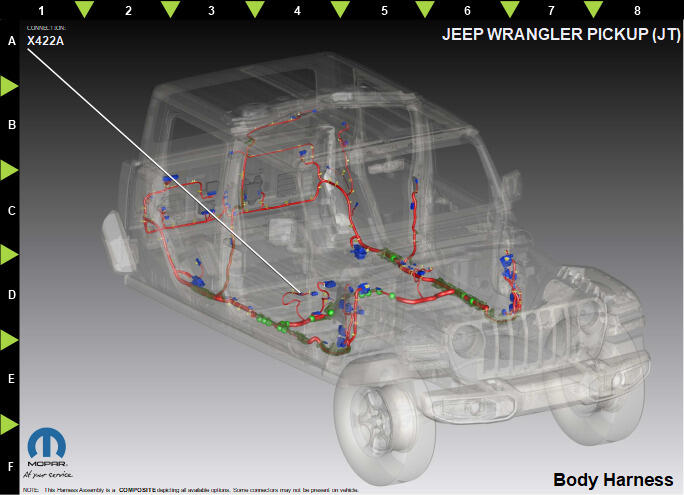

Fig 4: Xy422a Component Location View (Standard)
GCWD1318889Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R6 VT/BU 0.35 RIGHT SEAT THORAX SQUIB 1 LINE 2 N/A
2 R8 GY/GN 0.35 RIGHT SEAT THORAX SQUIB 1 LINE 1 N/A
