XY350A (Standard) Connector End View (Y350A)

Harness-Family: HVAC

Color: BLACK

Gender: MALE

Part Number: 6098-7966

Part Description: Not Available

Connector No: Y350A

Option: Standard

Repair Kit Part Number: TBD 19HD-16

Cavity Count: 19

Fig 1: Xy350a Connector End View (Standard)

GCWD1011671

Courtesy of CHRYSLER

Fig 2: Xy350a Isometric View (Standard)

GCWD1013358

Courtesy of CHRYSLER

Fig 3: Xy350a Wire Insertion View (Standard)

GCWD1007204

Courtesy of CHRYSLER

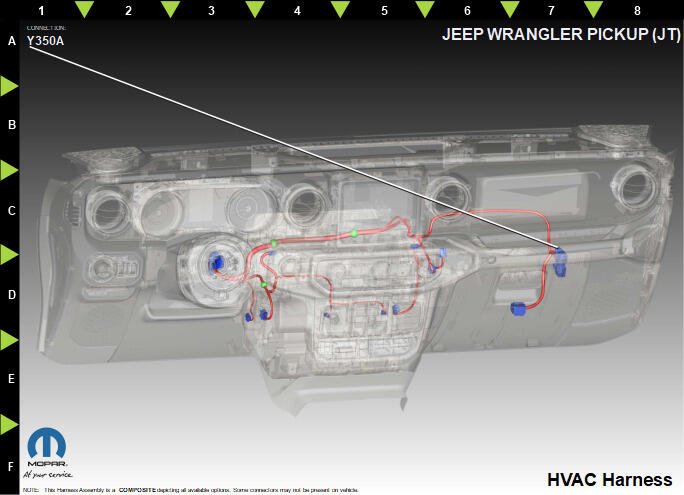

Fig 4: Xy350a Component Location View (Standard)

GCWD1318559

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C7	DB	3.0	BLOWER MOTOR SUPPLY	N/A
4	A231	RD	0.35	FUSED B(+)	N/A
8	Z910	BK	3.0	GROUND	N/A
10	C27	BU/WH	0.35	A/C COMPRESSOR CONTROL	N/A
12	F915	PK/GN	0.35	FUSED IGNITION RUN/START	N/A
13	D102	WH	0.35	CAN IHS (-)	N/A
14	D101	DG	0.35	CAN IHS (+)	N/A
15	Z912	BK	0.35	GROUND	N/A
17	C115	DB	0.35	DEFOGGER RELAY CONTROL	N/A
