G901A (Standard) Connector End View (G901A)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8621

Part Description: Not Available

Connector No: G901A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: G901a Connector End View (Standard)
GCWD1007872Courtesy of CHRYSLER
Fig 2: G901a Isometric View (Standard)
GCWD1008549Courtesy of CHRYSLER

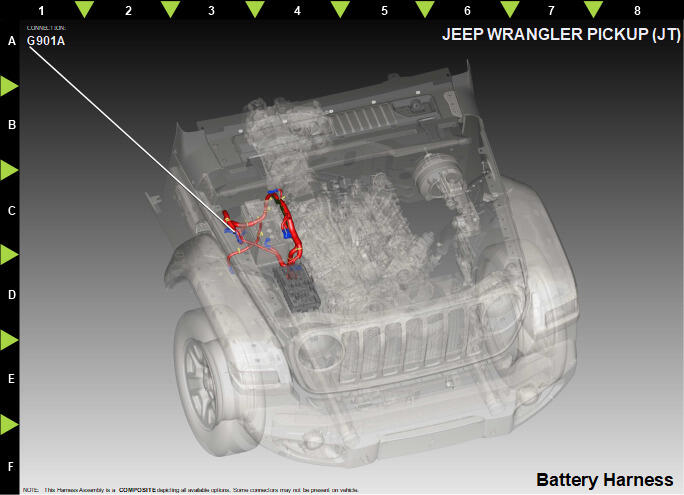

Fig 3: G901a Component Location View (Standard)
GCWD1318888Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z902 BK 35.0 GROUND N/A
