Coil-Ignition 5 (Standard) Connector End View (D5208A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 805-121-521

Part Description: Not Available

Connector No: D5208A

Option: Standard

Repair Kit Part Number: 68364262AB

Cavity Count: 3

Fig 1: Coil-Ignition 5 Connector End View (Standard)
GCWD1163982Courtesy of CHRYSLER
Fig 2: Coil-Ignition 5 Isometric View (Standard)
GCWD1308417Courtesy of CHRYSLER
Fig 3: Coil-Ignition 5 Wire Insertion View (Standard)
GCWD1009669Courtesy of CHRYSLER

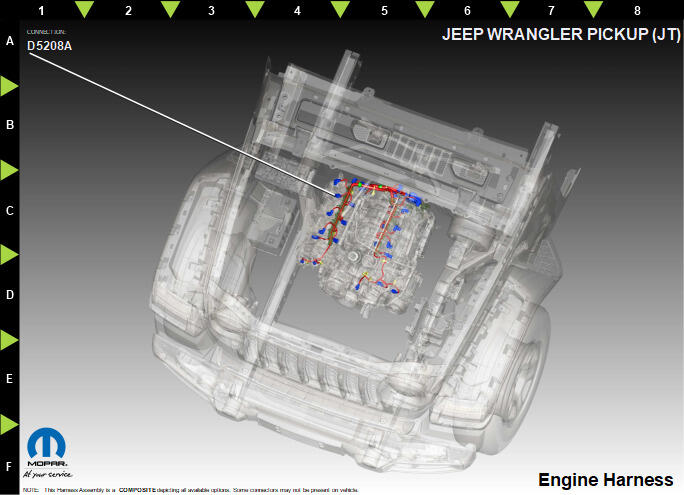

Fig 4: Coil-Ignition 5 Component Location View (Standard)
GCWD1318903Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K16 DB/YE 1.0 COIL CONTROL 5 N/A
2 F343 BN/WH 1.0 FUSED ASD RELAY OUTPUT N/A
3 Z927 BK 0.35 GROUND N/A
