XY230B (Standard) Connector End View (Y230B)

Harness-Family: Transmission

Color: GRAY

Gender: MALE

Part Number: 7286-9860-10

Part Description: Not Available

Connector No: Y230B

Option: Standard

Repair Kit Part Number: 68528141AA

Cavity Count: 2

Fig 1: Xy230b Connector End View (Standard)
GCWD1310566Courtesy of CHRYSLER
Fig 2: Xy230b Isometric View (Standard)
GCWD1311461Courtesy of CHRYSLER
Fig 3: Xy230b Wire Insertion View (Standard)
GCWD1009534Courtesy of CHRYSLER

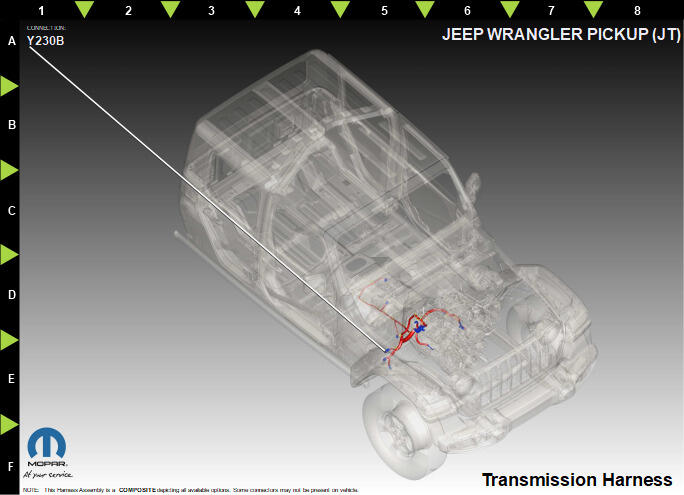

Fig 4: Xy230b Component Location View (Standard)
GCWD1318627Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 T750 YE/GY 4.0 STARTER RELAY OUTPUT N/A
2 N0 NA 0 NO CONNECT N/A
