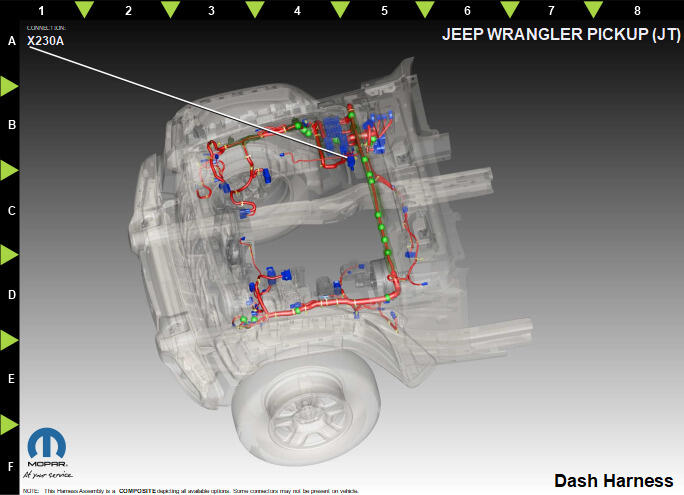

XY230A (Standard) Connector End View (X230A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7298-1001-30

Part Description: Not Available

Connector No: X230A

Option: Standard

Repair Kit Part Number: TBD 20JT-1

Cavity Count: 40

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	Z909	BK	2.0	GROUND	N/A
5	T301	DG/YE	0.75	SWITCHED BATTERY SOLENOID SUPPLY	N/A
6	N0	NA	0	NO CONNECT	N/A
7	T750	YE/GY	3.0	STARTER RELAY OUTPUT	N/A
8	T316	YE/GY	2.5	SHIFT MOTOR CONTROL B	N/A
9	K594	BN/GN	0.35	DRIVETRAIN SENSOR RETURN	N/A
10	T315	YE/BN	2.5	SHIFT MOTOR CONTROL A	N/A
11	T317	YE/BG	0.75	STEP MOTOR CONTROL D	N/A
12	N0	NA	0	NO CONNECT	N/A
13	F1	PK/WH	0.75	IGNITION OFF/RUN/START CONTROL OUTPUT	N/A
14	K914	BN/WH	0.35	SENSOR GROUND	3.0L DIESEL
14	T307	YE/DB	0.35	TRANSFER CASE ENCODER SIG 0	3.6L GAS
15	K181	BN/YE	0.35	FUEL PRESSURE SIGNAL	3.6L GAS
15	K355	VT	0.35	EXHAUST DIFFERENTIAL PRESSURE SIGNAL	3.0L DIESEL
16	K925	DB/GY	0.50	CKP GROUND	3.0L DIESEL
16	K859	BN/DB	0.35	5 VOLT SUPPLY	3.6L GAS
17	K388	BN	0.35	SENSOR GROUND	N/A
18	K372	BN/DG	0.35	EGT SIGNAL	N/A
19	K951	VT/GY	0.35	EXHAUST DIFFERENTIAL PRESSURE SENSOR GROUND	N/A
20	K386	BN/DB	0.35	EGT SIGNAL	3.0L DIESEL
20	T308	YE/BU	0.35	TRANSFER CASE ENCODER SIG 1	3.6L GAS
21	T308	YE/BU	0.35	TRANSFER CASE ENCODER SIG 1	N/A
22	K977	BN/WH	0.35	MODE SELECT	N/A
23	K352	BN/OG	0.35	EGT SIGNAL	N/A
24	K504	BN	0.35	DRIVETRAIN 5 VOLT SUPPLY	N/A
25	T317	YE/BG	0.75	STEP MOTOR CONTROL D	3.6L GAS
25	K384	BN/YE	0.35	EGT SIGNAL	3.0L DIESEL
26	K385	BN/YE	0.35	SENSOR GROUND	N/A
27	K853	DB/BN	0.50	CRANK POS 5 VOLT SUPPLY	N/A
28	K24	BN/BU	0.50	CKP SIGNAL	3.0L DIESEL
28	K917	BN/BG	0.35	SENSOR GROUND	3.6L GAS
29	A190	YE/RD	1.0	FUSED B(+)	N/A
30	K900	DB/DG	0.35	SENSOR GROUND	N/A
31	T314	YE/BU	0.35	TRANSFER CASE RANGE POSITION SIGNAL	N/A
32	F856	YE/PK	0.35	5 VOLT SUPPLY	3.0L DIESEL
32	T301	DG/YE	0.75	SWITCHED BATTERY SOLENOID SUPPLY	3.6L GAS
33	K179	GY/GN	0.35	FUEL PRESSURE SIGNAL 2	N/A
34	K916	BN/OG	0.35	SENSOR GROUND	3.0L DIESEL
34	K594	BN/GN	0.35	DRIVETRAIN SENSOR RETURN	3.6L GAS
35	D29	VT/WH	0.75	CAN C (+)	N/A
36	D30	YE	0.75	CAN C (-)	N/A
37	D440	WH/BN	0.75	DATA BUS(-) ESHIFT	N/A
38	D441	WH/OG	0.75	DATA BUS(+) ESHIFT	N/A
39	K914	BN/WH	0.35	SENSOR GROUND	N/A
40	K354	VT/BU	0.35	EXHAUST DIFFERENTIAL PRESSURE 5 VOLT SUPPLY	N/A
