XY203A (Standard) Connector End View (X203A)

Harness-Family: Dash

Color: BROWN

Gender: FEMALE

Part Number: 7287-1405-80

Part Description: Not Available

Connector No: X203A

Option: Standard

Repair Kit Part Number: 68585982AA

Cavity Count: 2

Fig 1: Xy203a Connector End View (Standard)

GCWD1164053

Courtesy of CHRYSLER

Fig 2: Xy203a Isometric View (Standard)

GCWD1308989

Courtesy of CHRYSLER

Fig 3: Xy203a Wire Insertion View (Standard)

GCWD1009970

Courtesy of CHRYSLER

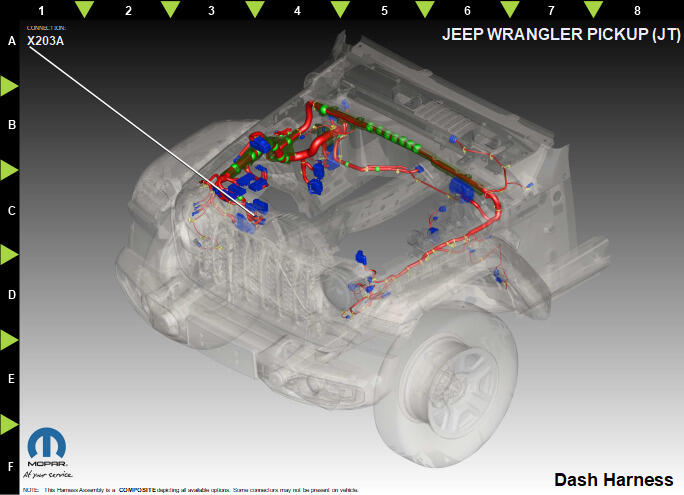

Fig 4: Xy203a Component Location View (Standard)

GCWD1318458

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A29	RD/GY	6.0	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
