XY111A (Standard) Connector End View (Y111A)

Harness-Family: Headlamp_Left

Color: DARK GRAY

Gender: MALE

Part Number: 7282-5577-10

Part Description: YESC CONNECTOR SUB ASSEMBLY

Connector No: Y111A

Option: Standard

Repair Kit Part Number: 68528161AA

Cavity Count: 6

Fig 1: Xy111a Connector End View (Standard)

GCWD1013865

Courtesy of CHRYSLER

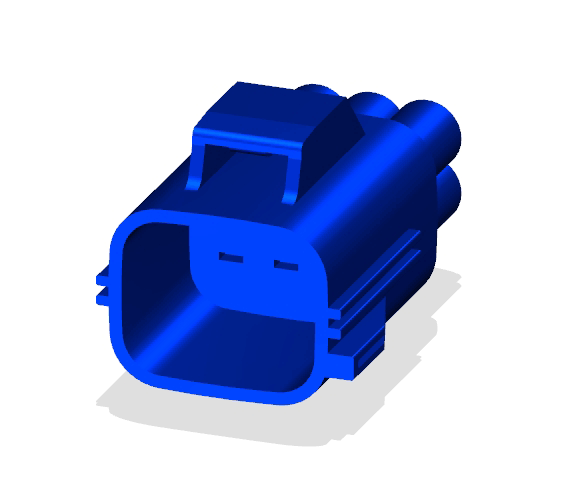

Fig 2: Xy111a Isometric View (Standard)

GCWD1011696

Courtesy of CHRYSLER

Fig 3: Xy111a Wire Insertion View (Standard)

GCWD1010255

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L33	WH/GN	2.0	LEFT HIGH BEAM DRIVER	N/A
2	L133	WH/YE	0.35	HEADLAMP LEVEL MOTOR SIGNAL	HEADLAMP LEVELING
2	L131	WH/GN	0.35	LEFT HEADLAMP LEVEL SENSOR SIGNAL	AUTOMATIC HEADLAMP LEVELING
3	Z905	BK	1.5	GROUND	N/A
4	L43	WH/DB	1.5	LEFT LOW BEAM DRIVER	N/A
5	F927	PK/YE	0.50	FUSED IGNITION	N/A
6	Z905	BK	0.35	GROUND	N/A
