Speaker-Portable Wireless (Standard) Connector End View (D8116A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 805-122-581

Part Description: Not Available

Connector No: D8116A

Option: Standard

Repair Kit Part Number: 68396618AA

Cavity Count: 4

Fig 1: Speaker-Portable Wireless Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Speaker-Portable Wireless Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Speaker-Portable Wireless Wire Insertion View (Standard)

Courtesy of CHRYSLER

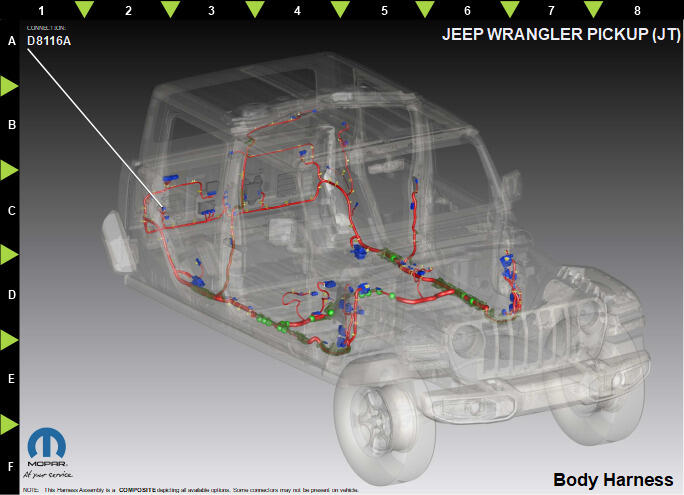

Fig 4: Speaker-Portable Wireless Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F985	PK/YE	0.50	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)	N/A
2	X306	GY/VT	0.75	AMPLIFIED SUBWOOFER 4 (+)	N/A
3	X396	DG/VT	0.75	AMPLIFIED SUBWOOFER 4 (-)	N/A
4	Z916	BK/YE	0.50	GROUND	N/A
