S005 (Standard) Connector End View (S005)

Harness-Family: Engine_Diesel1

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S005

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S005 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

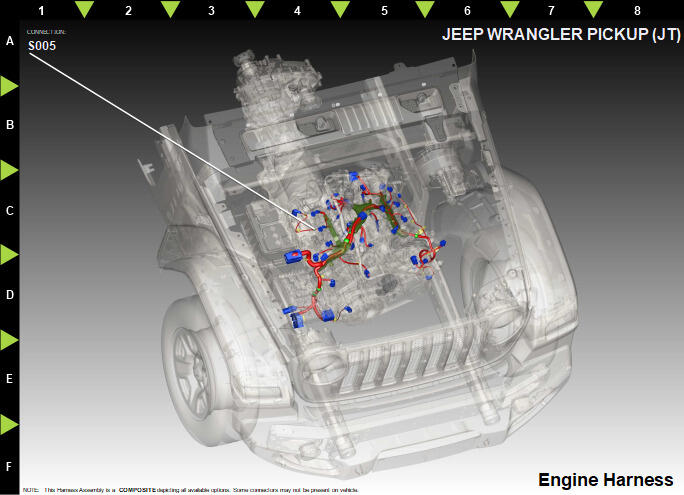

Fig 2: S005 Component Location View (Standard)
GCWD1318781Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K690 BK/RD 0.50 COMBO PRESS AND TEMP SNSR RTN N/A
2 K690 BK/RD 0.50 COMBO PRESS AND TEMP SNSR RTN N/A
3 K690 BK/RD 0.50 COMBO PRESS AND TEMP SNSR RTN N/A
