Actuator-RECIRCULATION Door (Standard) Connector End View (D10A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 0-1456985-4

Part Description: Not Available

Connector No: D10A

Option: Standard

Repair Kit Part Number: 68087927AB

Cavity Count: 6

Fig 1: Actuator-Recirculation Door Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Actuator-Recirculation Door Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Actuator-Recirculation Door Wire Insertion View (Standard)

Courtesy of CHRYSLER

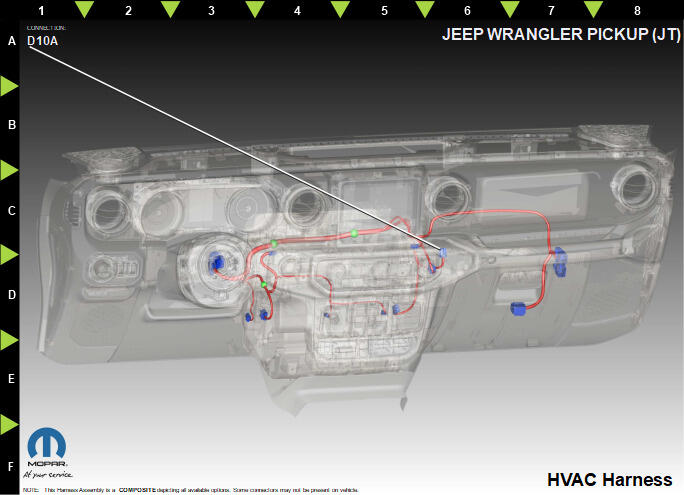

Fig 4: Actuator-Recirculation Door Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C140	DB/YE	0.35	OUTSIDE AIR INLET DRIVE	LHD
1	C141	DB/DG	0.35	RECIRCULATION AIR INLET DRIVE	RHD
2	C34	DB/BU	0.35	SIGNAL RETURN	LHD
2	F710	BU/PK	0.35	5V REFERENCE SIGNAL	RHD
3	C34	DB/BU	0.35	SIGNAL RETURN	RHD
3	F710	BU/PK	0.35	5V REFERENCE SIGNAL	LHD
4	C144	DB/BU	0.35	RECIRC DOOR SIG	N/A
6	C140	DB/YE	0.35	OUTSIDE AIR INLET DRIVE	RHD
6	C141	DB/DG	0.35	RECIRCULATION AIR INLET DRIVE	LHD
