XY502A (Standard) Connector End View (X502A)

Harness-Family: REAR BUMPER

Color: BLACK

Gender: FEMALE

Part Number: 34900-6119

Part Description: Not Available

Connector No: X502A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Xy502a Connector End View (Standard)

GCWD1308715

Courtesy of CHRYSLER

Fig 2: Xy502a Isometric View (Standard)

GCWD1308798

Courtesy of CHRYSLER

Fig 3: Xy502a Wire Insertion View (Standard)

GCWD1008803

Courtesy of CHRYSLER

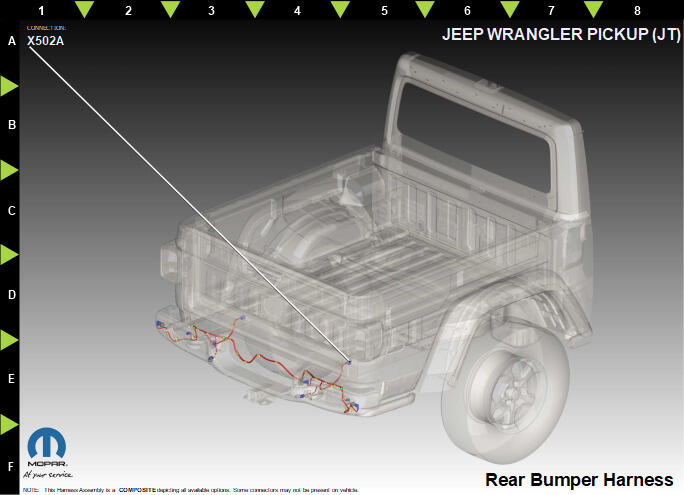

Fig 4: Xy502a Component Location View (Standard)

GCWD1318589

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X700	GY/OG	0.35	REAR PARK ASSIST SENSOR SUPPLY	N/A
2	D704	WH/DG	0.35	PARK ASSIST SIGNAL 10	N/A
3	D701	WH/BU	0.35	PARK ASSIST SIGNAL 8	N/A
4	D703	WH/OG	0.35	PARK ASSIST SIGNAL 9	N/A
5	D710	WH	0.35	PARK ASSIST SIGNAL 11	N/A
6	X750	GY/BU	0.35	REAR PARK ASSIST SENSOR GROUND	N/A
