XY440A (Standard) Connector End View (X440A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_523

Part Description: Not Available

Connector No: X440A

Option: Standard

Repair Kit Part Number: 68535910AA

Cavity Count: 3

Fig 1: Xy440a Connector End View (Standard)

GCWD1319109

Courtesy of CHRYSLER

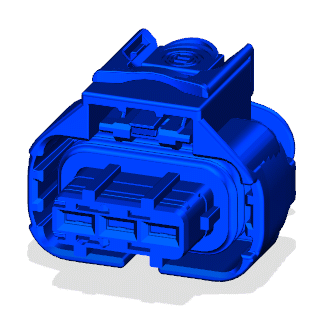

Fig 2: Xy440a Isometric View (Standard)

GCWD1318713

Courtesy of CHRYSLER

Fig 3: Xy440a Wire Insertion View (Standard)

GCWD1009020

Courtesy of CHRYSLER

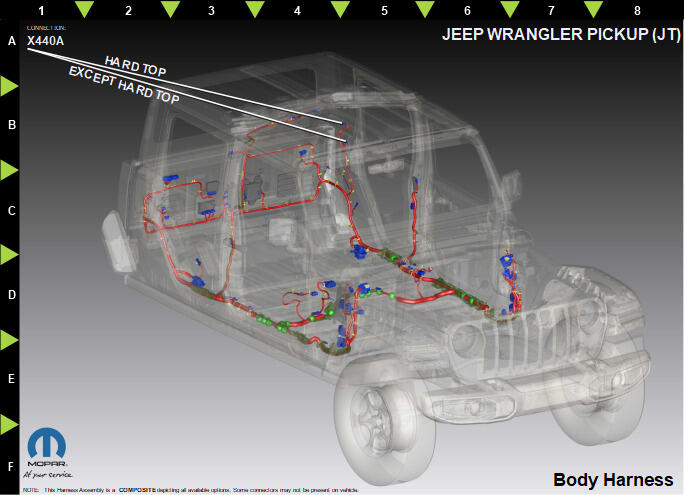

Fig 4: Xy440a Component Location View (Standard)

GCWD1318515

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z915	BK	2.5	GROUND	N/A
2	Q997	OG/VT	0.50	ROOF PRESENCE DETECTION SENSE	N/A
3	C15	DB/WH	2.5	REAR WINDOW DEFOGGER CONTROL OUTPUT	N/A
