Description And Operation: HOMELINK®: Notes

DESCRIPTION

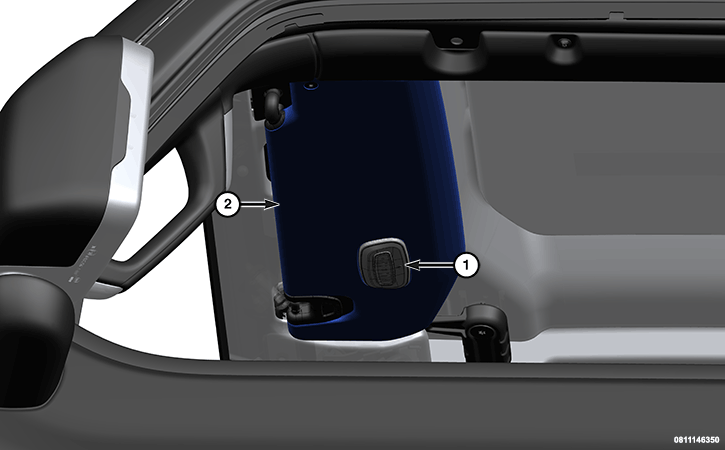

GC0181667Courtesy of CHRYSLER GROUP, LLC
COMPONENT INDEX

1. Refer to HOMELINK® TRANSCEIVER .

Some vehicles are equipped with the HomeLink® transceiver (1). The transceiver is located in the drivers side sun visor assembly (2). The only visible component of the HomeLink® transceiver are the three push buttons. The buttons are marked with one, two or three dots, respectively, for identification of each channel.

OPERATION
