M186/M210 Front Axles

DISASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

1. Remove and DISCARD  the ring gear bolts and remove the ring gear from the differential case.

   Courtesy of CHRYSLER GROUP, LLC

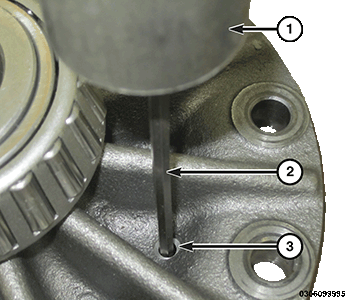

   1 - Hammer

   2 - Punch

   3 - Roll Pin

2. Remove the pinion mate shaft roll pin;
   • with a punch and hammer if the case has a through hole.
   • with a suitable slide hammer if the case has a blind hole.

   .

   Courtesy of CHRYSLER GROUP, LLC

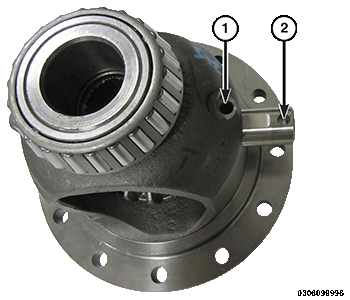

   1 - Differential Case

   2 - Pinion Mate Shaft

3. Remove the pinion mate shaft from the differential case and the pinion gears.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Differential Side Gears

   2 - Pinion Gears

4. Rotate the differential side gears to expose the pinion gears to the differential windows.
5. Remove the pinion gears with the thrust washers through the differential windows.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Differential Side Gears

   2 - Differential Pinion Gears

6. Remove the differential side gears with thrust washers through the differential window.

ASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

1. Lubricate all differential components with axle lubricant.
2. Install the differential side gears with the thrust washers through the differential window.

   Courtesy of CHRYSLER GROUP, LLC

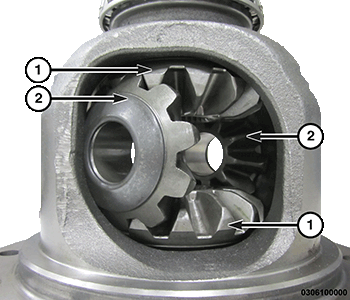

   1 - Differential Side Gears

   2 - Differential Pinion Gears

3. Install the pinion gears with the thrust washers through differential windows.

   Courtesy of CHRYSLER GROUP, LLC

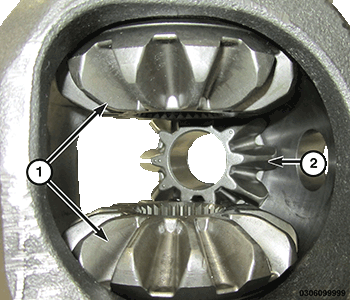

   1 - Pinion Gears

   2 - Pinion Mate Shaft Hole

4. Rotate the pinion gears with the thrust washers and align the gears to the pinion mate shaft hole.

   Courtesy of CHRYSLER GROUP, LLC

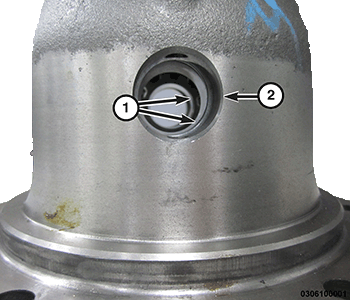

   1 - Roll Pin Hole

   2 - Pinion Mate Shaft

5. Install the pinion mate shaft in the differential case and pinion gears while keeping the pinion mate shaft roll pin hole aligned with the opening.

   Courtesy of CHRYSLER GROUP, LLC

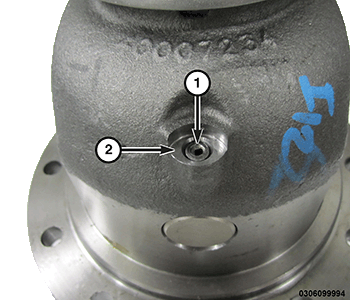

   1 - Roll Pin

   2 - Differential Case

6. Install the pinion mate shaft roll pin in the differential case and through the pinion mate shaft.

   Courtesy of CHRYSLER GROUP, LLC

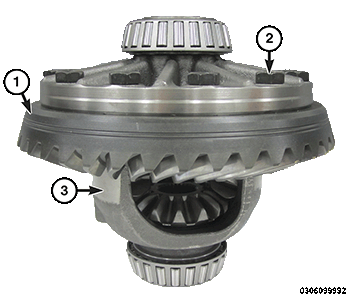

   1 - Ring Gear

   2 - Ring Gear Bolts

   3 - Differential Case

7. Install the ring gear, the NEW  ring gear bolts on the differential case and alternately tighten to the proper torque specification.
