Axle Locker Switch: Notes

REMOVAL

1. Remove the differential cover. Refer to REMOVAL AND INSTALLATION .

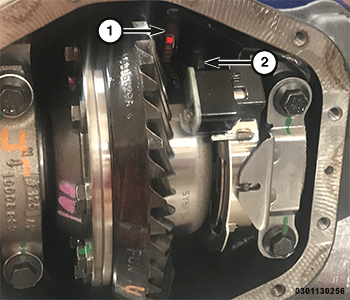

   Courtesy of CHRYSLER GROUP, LLC

   1 - Axle Locker Switch Harness Connector

   2 - Axle Locker Switch

2. Disconnect the axle locker switch wire harness connector from the locker switch and remove the axle locker switch union.

INSTALLATION

During installation, torque the fasteners to the specifications in the torque table(s) below.

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Verify the axle locker is operating correctly.

TORQUE SPECIFICATIONS
