FLEXPLATE And Torque Converter
TORQUE SPECIFICATIONS - FLEXPLATE AND TORQUE CONVERTER

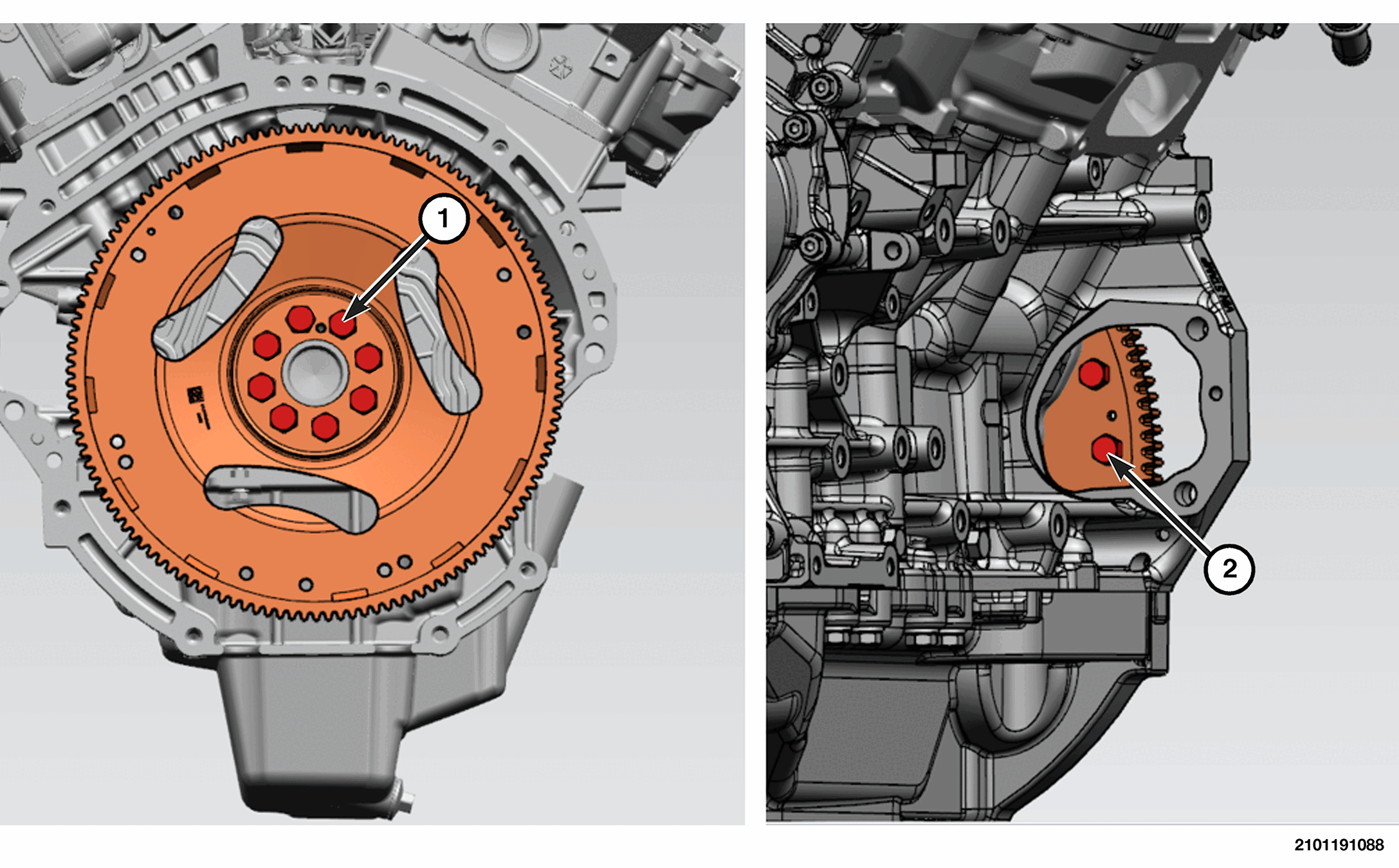

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Flexplate to Crankshaft Bolts | 95 N.m (70 Ft. Lbs.) | Tighten in a crisscross pattern Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 2 | Torque Converter to Flex Plate Bolt | 41 N.m (30 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications.
NOTE:
If old fastener must be re-used, Loc-Tite® must be applied to the threads. |
