BELLHOUSING And Oil Fill Plug

Courtesy of CHRYSLER GROUP, LLC

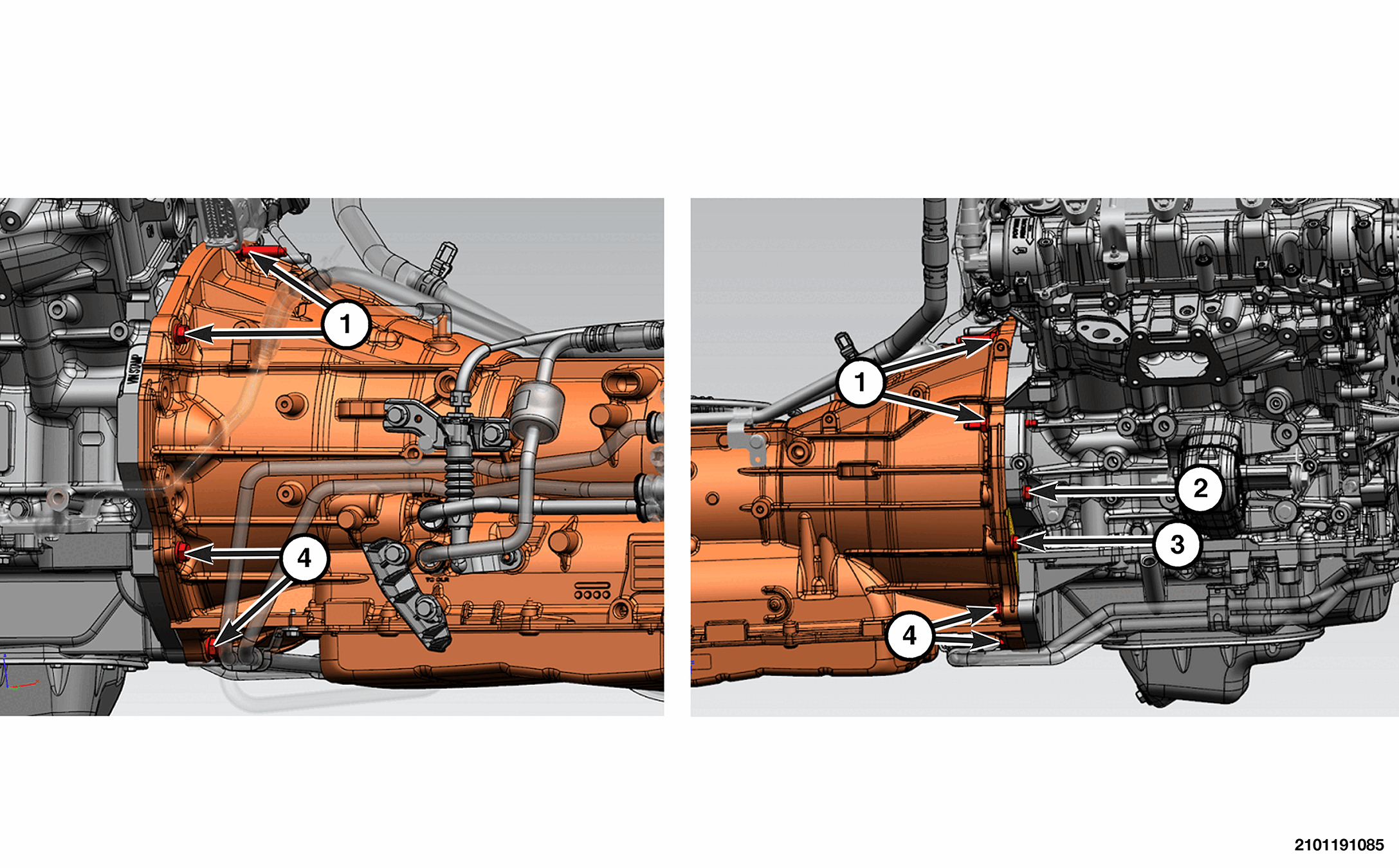

TORQUE SPECIFICATIONS - BELLHOUSING AND OIL FILL PLUG

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Bellhousing to Engine Bolts	Bolt 50 N.m (37 Ft. Lbs.) Double Ended Stud 48 N.m (35 Ft. Lbs.)	-
2	Engine Block To Transmission Bellhousing Bolt	50 N.m (37 Ft. Lbs.)	-
3	Dust Shield To Transmission Bellhousing Bolt	12 N.m (9 Ft. Lbs.)	-
4	Bellhousing To Engine Oil Pan Bolts	50 N.m (37 Ft. Lbs.)	-
Not Shown	Transmission Oil Fill Plug	35 N.m (26 Ft. Lbs.)	Located on right side of transmission case.
