Transmission Cooler Line Quick Connect Fittings: Connect

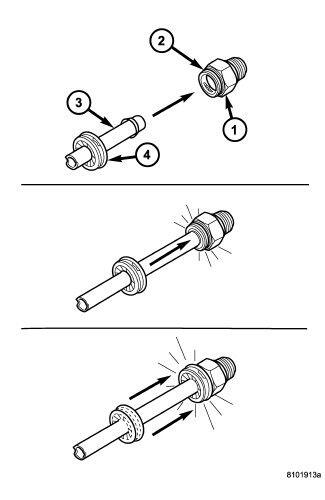

TRANSMISSION END

Courtesy of CHRYSLER GROUP, LLC

1 - QUICK CONNECT FITTING

2 - CLIP

3 - OIL COOLER LINE

4 - DUST CAP

Align transmission cooler line (3) with quick connect fitting while pushing straight into the fitting.
Push in on transmission cooler line until a "click" is heard or felt.
Slide dust cap (4) down the transmission cooler line and snap it over the quick connect fitting until it is fully seated and rotates freely. Dust cap will only snap over quick connect fitting when the transmission cooler line is properly installed.

NOTE:

If dust cap will not snap into place, repeat assembly step #2.

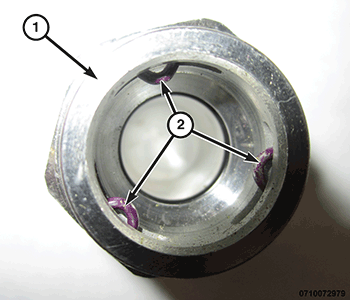

TRANSMISSION OIL COOLER END

Courtesy of CHRYSLER GROUP, LLC

Position the spring clip in the quick connect fitting (1) so that the three locking tabs (2) appear as pictured.
NOTE:
Lubricate the end of the transmission cooler oil line with the appropriate fluid to ease installation.
Push the transmission oil cooler lines into the fittings until a "click" is heard or felt.
Check that the transmission oil cooler line is locked into the fitting by attempting to pull the line out. If the line comes out, inspect the spring clip for correct installation and repeat steps 2 and 3.
