Radio C4 (Standard) Connector End View (D2784D)

Harness-Family: Antenna_IP

Color: BLACK

Gender: FEMALE

Part Number: 1924792-1

Part Description: Not Available

Connector No: D2784D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Radio C4 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Radio C4 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Radio C4 Wire Insertion View (Standard)

Courtesy of CHRYSLER

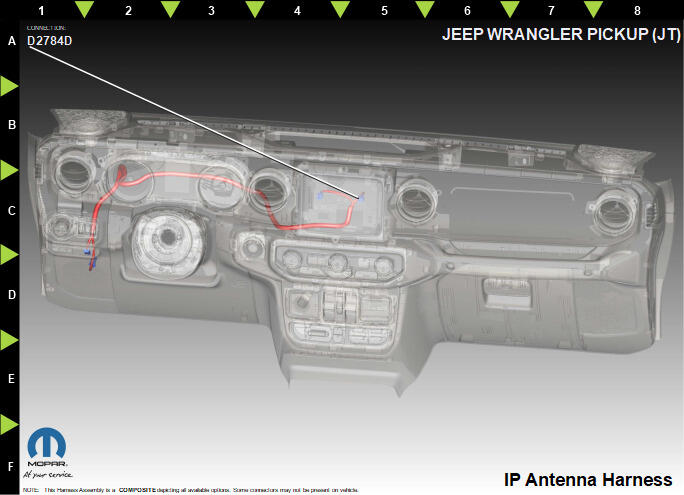

Fig 4: Radio C4 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D6	BK/BK	0.20	AM/FM COAX 2	N/A
1	D6	BK	0.82	AM/FM COAX 2	N/A
