Radio C3 (Standard) Connector End View (D2784C)

Harness-Family: IP

Color: SIGNAL WHITE

Gender: FEMALE

Part Number: 776682-2

Part Description: RG-59, 180 DEGREE, FAKRA, SMB

Connector No: D2784C

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

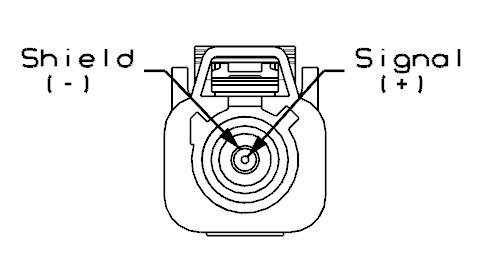

Fig 1: Radio C3 Connector End View (Standard)

Courtesy of CHRYSLER

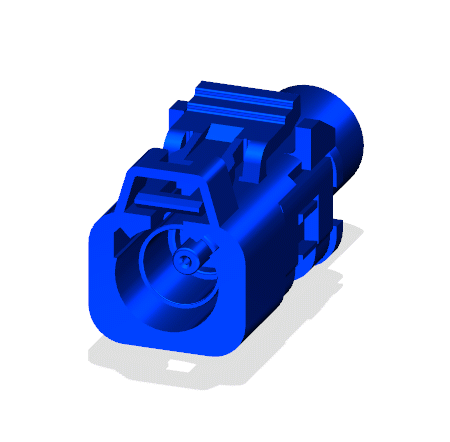

Fig 2: Radio C3 Isometric View (Standard)

Courtesy of CHRYSLER

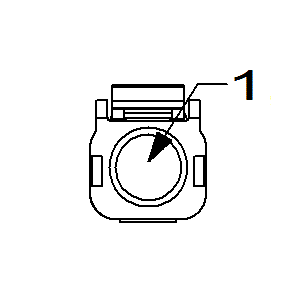

Fig 3: Radio C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Radio C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D5	BK	0.82	ANTENNA SIGNAL	N/A
