Radio C2 (Standard) Connector End View (D2784B)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 111014-9001

Part Description: Not Available

Connector No: D2784B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

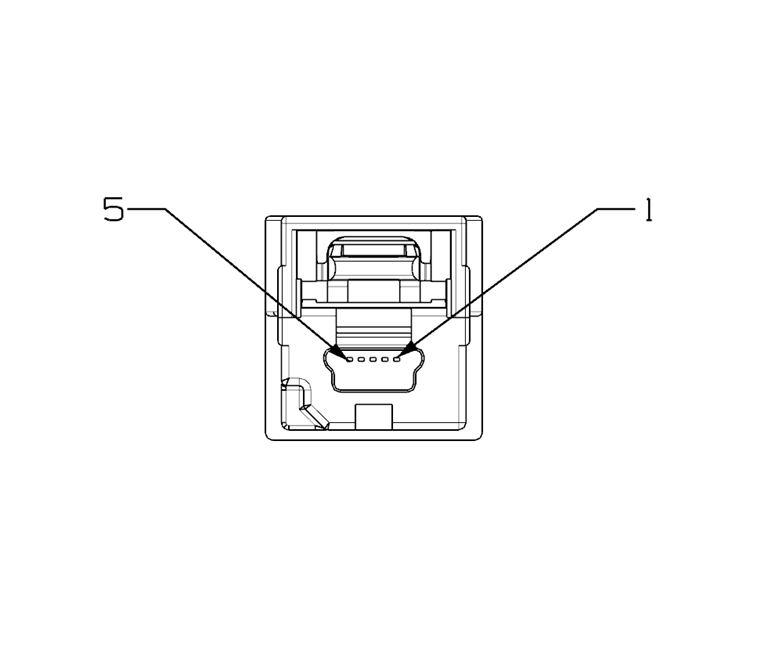

Fig 1: Radio C2 Connector End View (Standard)

Courtesy of CHRYSLER

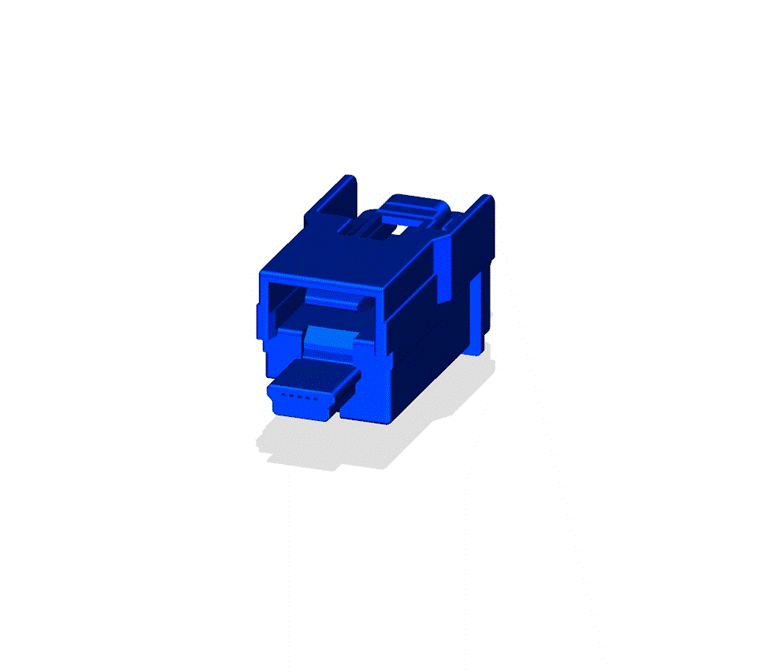

Fig 2: Radio C2 Isometric View (Standard)

Courtesy of CHRYSLER

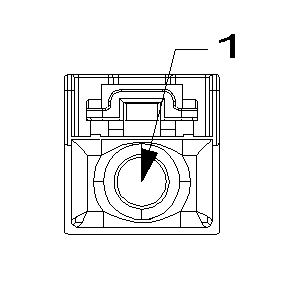

Fig 3: Radio C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Radio C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J2	BK	0.35	USB CABLE	N/A
