Pump-Washer-Windshield-Reversible (RHD) Connector End View (D3038A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 1-1355200-1

Part Description: Not Available

Connector No: D3038A

Option: RHD

Repair Kit Part Number: 68080560AA

Cavity Count: 2

Fig 1: Pump-Washer-Windshield-Reversible Connector End View (RHD)

Courtesy of CHRYSLER

Fig 2: Pump-Washer-Windshield-Reversible Isometric View (RHD)

Courtesy of CHRYSLER

Fig 3: Pump-Washer-Windshield-Reversible Wire Insertion View (RHD)

Courtesy of CHRYSLER

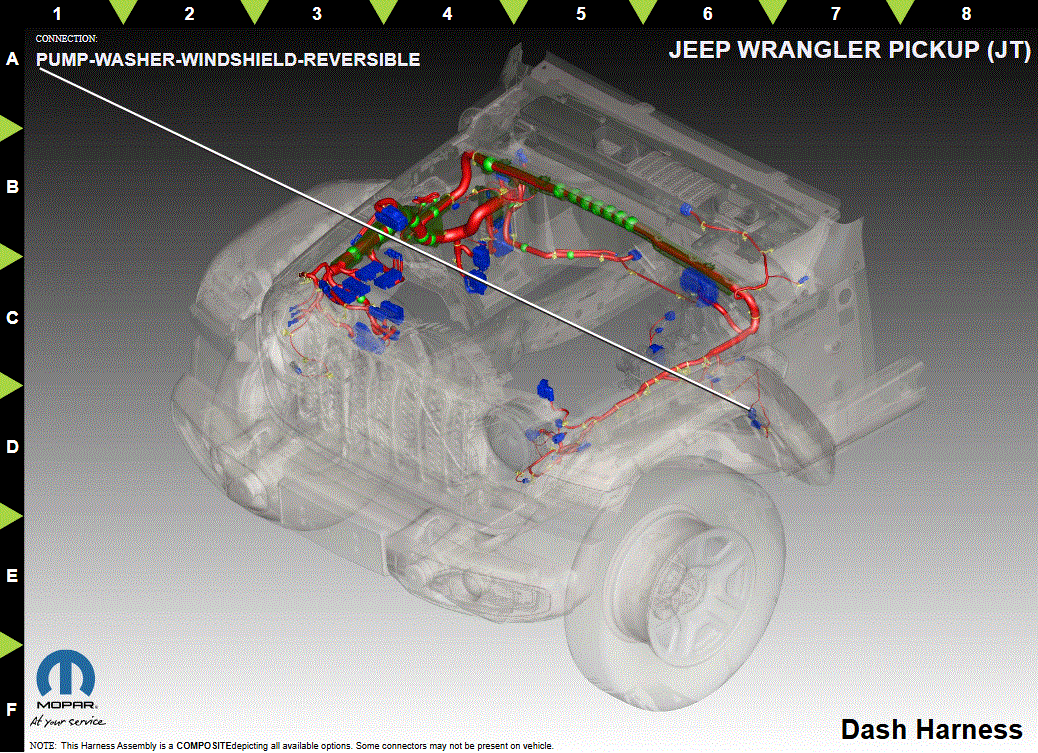

Fig 4: Pump-Washer-Windshield-Reversible Component Location View (RHD)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	W18	BN	0.50	FRONT WASHER PUMP MOTOR CONTROL	N/A
2	W39	BN/VT	0.50	FRONT CAMERA WASHER PUMP MOTOR CONTROL	N/A
