Pump-Washer-Windshield-Reversible (Except RHD) Connector End View (D3038A)

Harness-Family: Jumper_Washer

Color: BLACK

Gender: FEMALE

Part Number: 1-1355200-1

Part Description: Not Available

Connector No: D3038A

Option: EXCEPT RHD

Repair Kit Part Number: 68080560AA

Cavity Count: 2

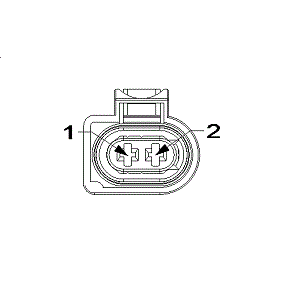

Fig 1: Pump-Washer-Windshield-Reversible Connector End View (EXCEPT RHD)
GCWD1012694Courtesy of CHRYSLER

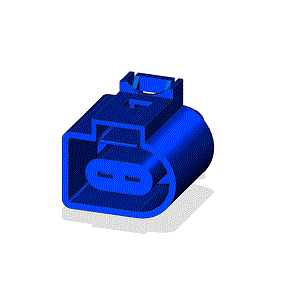

Fig 2: Pump-Washer-Windshield-Reversible Isometric View (EXCEPT RHD)
GCWD1012798Courtesy of CHRYSLER

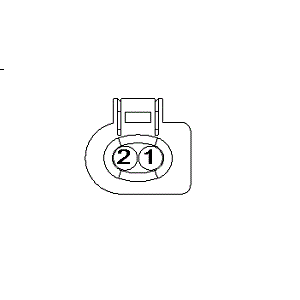

Fig 3: Pump-Washer-Windshield-Reversible Wire Insertion View (EXCEPT RHD)
GCWD1010404Courtesy of CHRYSLER

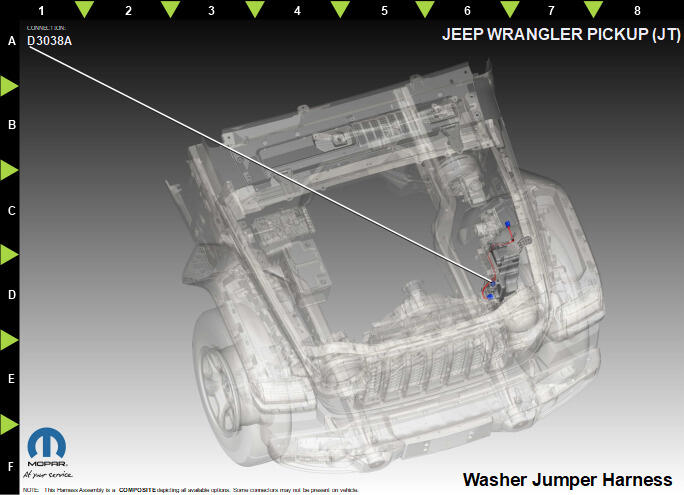

Fig 4: Pump-Washer-Windshield-Reversible Component Location View (EXCEPT RHD)
GCWD1318244Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 W39 BN/YE 0.80 FRONT CAMERA WASHER PUMP MOTOR CONTROL PREMIUM
1 W18 BN 0.80 FRONT WASHER PUMP MOTOR CONTROL BASE
2 W39 BN/VT 0.80 FRONT CAMERA WASHER PUMP MOTOR CONTROL BASE
2 W18 BN 0.80 FRONT WASHER PUMP MOTOR CONTROL PREMIUM
