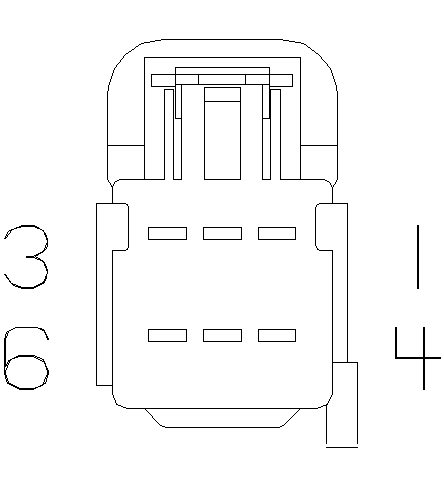

Power Outlet-Console (Standard) Connector End View (D7423A)

Harness-Family: Console

Color: GRAY

Gender: FEMALE

Part Number: 7283-6454-40

Part Description: KAIZEN YESC 1.5MM UNSEALED SUB ASSEMBLY

Connector No: D7423A

Option: Standard

Repair Kit Part Number: 68030094AA

Cavity Count: 6

Fig 1: Power Outlet-Console Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Power Outlet-Console Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Power Outlet-Console Wire Insertion View (Standard)

Courtesy of CHRYSLER

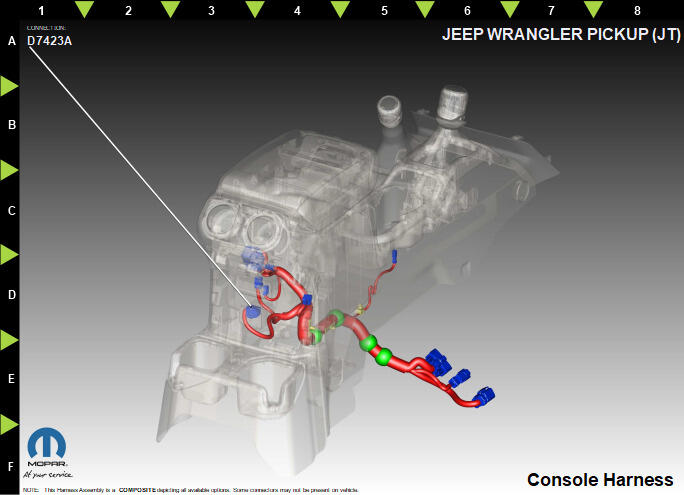

Fig 4: Power Outlet-Console Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P825	GN/BU	0.35	220 VOLT AC LINE 3	220VAC
1	P805	GN/DB	0.35	115 VOLT AC LINE 3	110VAC
2	N0	NA	0	NO CONNECT	N/A
3	P824	GN	1.0	220 VOLT AC LINE 1	220VAC
3	P801	GN	1.0	115 VOLT AC LINE 1	110VAC
4	P807	GN/BU	0.35	INVERTER SWITCH SIGNAL	110VAC
4	P827	GN/DB	0.35	INVERTER SWITCH SIGNAL	220VAC
5	N0	NA	0	NO CONNECT	N/A
6	P802	GN/OG	1.0	115 VOLT AC LINE 2	110VAC
6	P828	GN/OG	1.0	220 VOLT AC LINE 2	220VAC
