Port-USB (Standard) Connector End View (D3142A)

Harness-Family: Console

Color: BLACK

Gender: FEMALE

Part Number: 111014-9000

Part Description: Not Available

Connector No: D3142A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

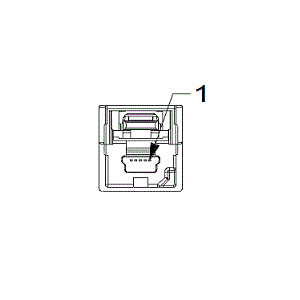

Fig 1: Port-Usb Connector End View (Standard)
GCWD1010158Courtesy of CHRYSLER
Fig 2: Port-Usb Isometric View (Standard)
GCWD1009857Courtesy of CHRYSLER

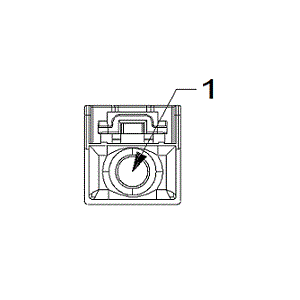

Fig 3: Port-Usb Wire Insertion View (Standard)
GCWD1008592Courtesy of CHRYSLER

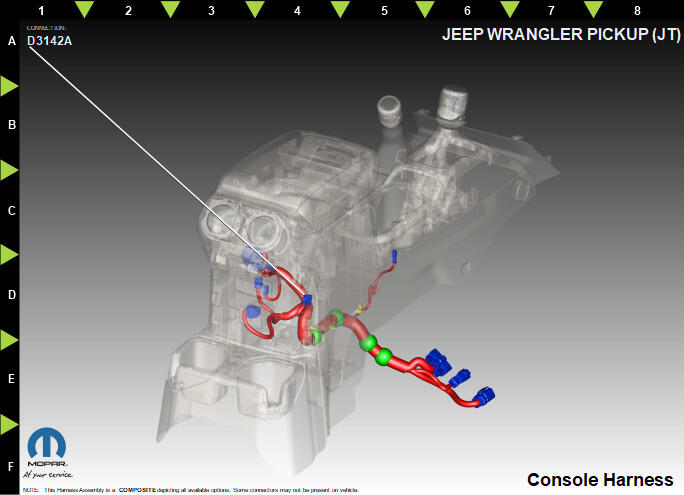

Fig 4: Port-Usb Component Location View (Standard)
GCWD1318436Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 J3 BK 0.35 USB CABLE N/A
