Motor-Wiper-Front (Standard) Connector End View (D3044A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 1718562-1

Part Description: Not Available

Connector No: D3044A

Option: Standard

Repair Kit Part Number: 68335199AA

Cavity Count: 4

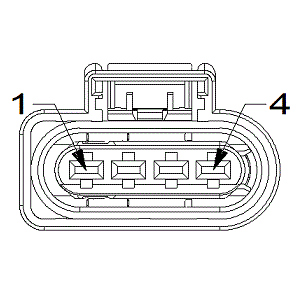

Fig 1: Motor-Wiper-Front Connector End View (Standard)

Courtesy of CHRYSLER

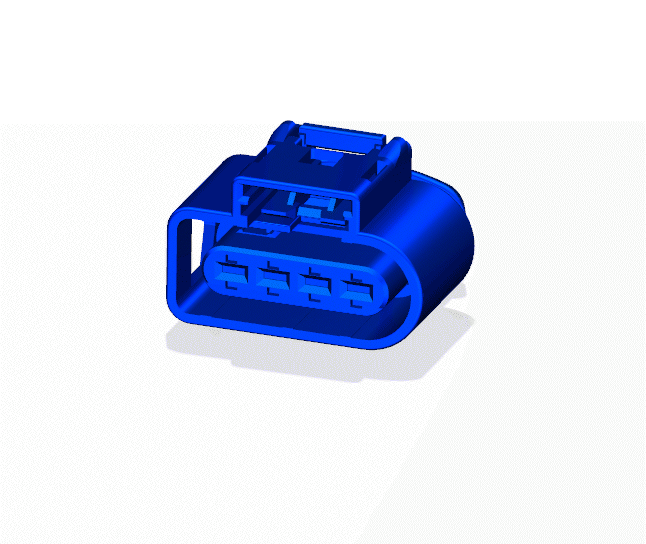

Fig 2: Motor-Wiper-Front Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Motor-Wiper-Front Wire Insertion View (Standard)

Courtesy of CHRYSLER

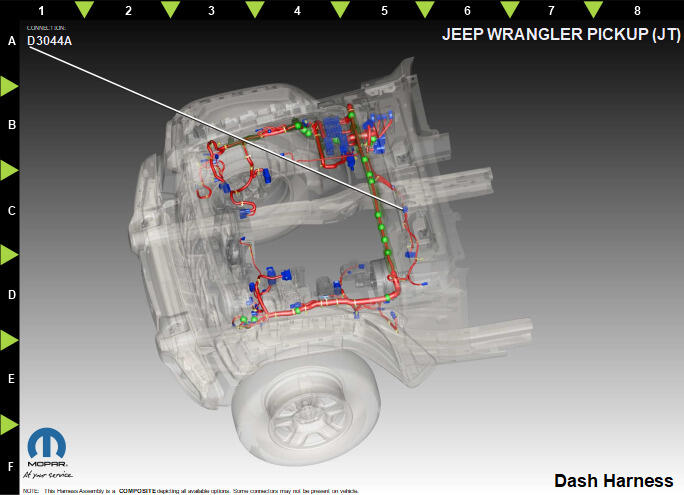

Fig 4: Motor-Wiper-Front Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	W7	BN/GY	0.50	WIPER PARK SWITCH SENSE	N/A
2	Z907	BK	2.0	GROUND	N/A
3	W4	BN/OG	2.0	WIPER HIGH SPEED CONTROL OUTPUT	N/A
4	W3	BN/WH	2.0	WIPER LOW SPEED CONTROL OUTPUT	N/A
