Motor-Window-Passenger (Standard) Connector End View (D3063A)

Harness-Family: Door_Pass

Color: BLACK

Gender: FEMALE

Part Number: 54200206

Part Description: Not Available

Connector No: D3063A

Option: Standard

Repair Kit Part Number: 05017117AA

Cavity Count: 2

Fig 1: Motor-Window-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Motor-Window-Passenger Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Motor-Window-Passenger Wire Insertion View (Standard)

Courtesy of CHRYSLER

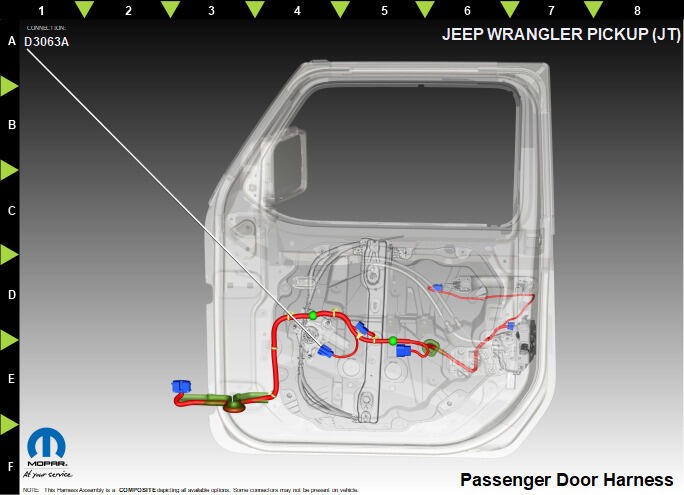

Fig 4: Motor-Window-Passenger Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q12	OG/BN	2.0	PASSENGER WINDOW DRIVER (UP)	N/A
2	Q22	OG/VT	2.0	PASSENGER WINDOW DRIVER (DOWN)	N/A
