Motor-Window-Driver (Standard) Connector End View (D3062A)

Harness-Family: Door_Driver

Color: BLACK

Gender: FEMALE

Part Number: 54200206

Part Description: Not Available

Connector No: D3062A

Option: Standard

Repair Kit Part Number: 05017117AA

Cavity Count: 2

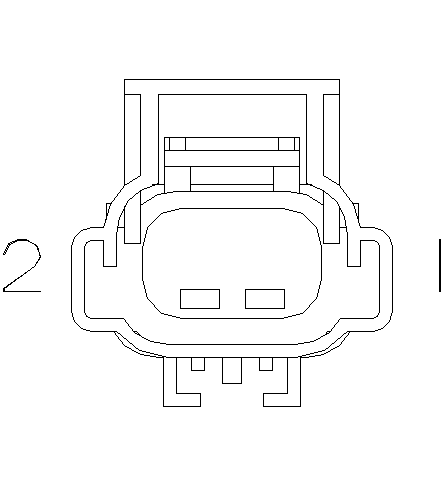

Fig 1: Motor-Window-Driver Connector End View (Standard)
GCWD1006292Courtesy of CHRYSLER

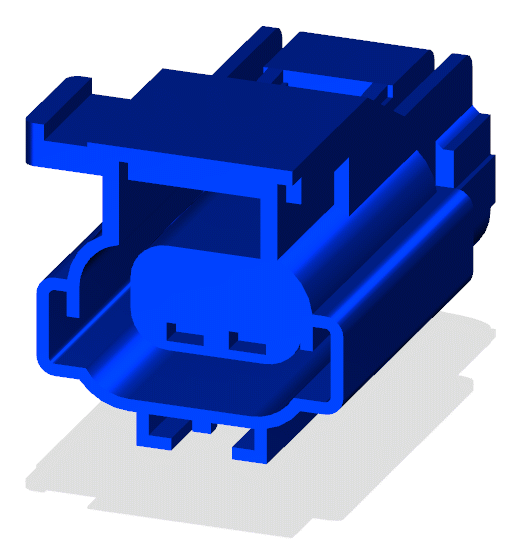

Fig 2: Motor-Window-Driver Isometric View (Standard)
GCWD1088850Courtesy of CHRYSLER

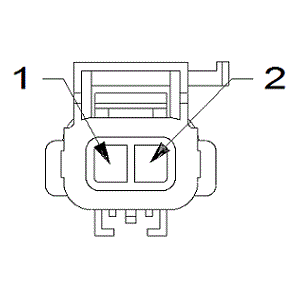

Fig 3: Motor-Window-Driver Wire Insertion View (Standard)
GCWD1007282Courtesy of CHRYSLER

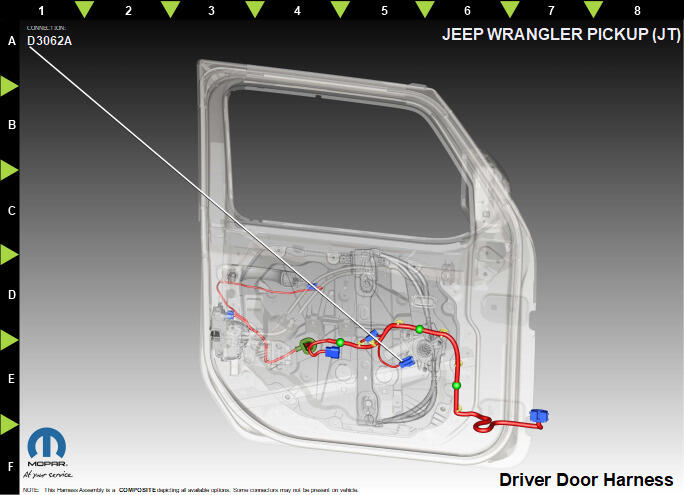

Fig 4: Motor-Window-Driver Component Location View (Standard)
GCWD1318772Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Q11 OG/GN 2.0 DRIVER WINDOW DRIVER (UP) N/A
2 Q21 OG/WH 2.0 DRIVER WINDOW DRIVER (DOWN) N/A
