Motor-Power Steering Pump C1 (Standard) Connector End View (D2704A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7287-1990-30

Part Description: 2P 9.5 SEALED SUB-ASSEMBLY W/CPA

Connector No: D2704A

Option: Standard

Repair Kit Part Number: Not Serviceable

Cavity Count: 2

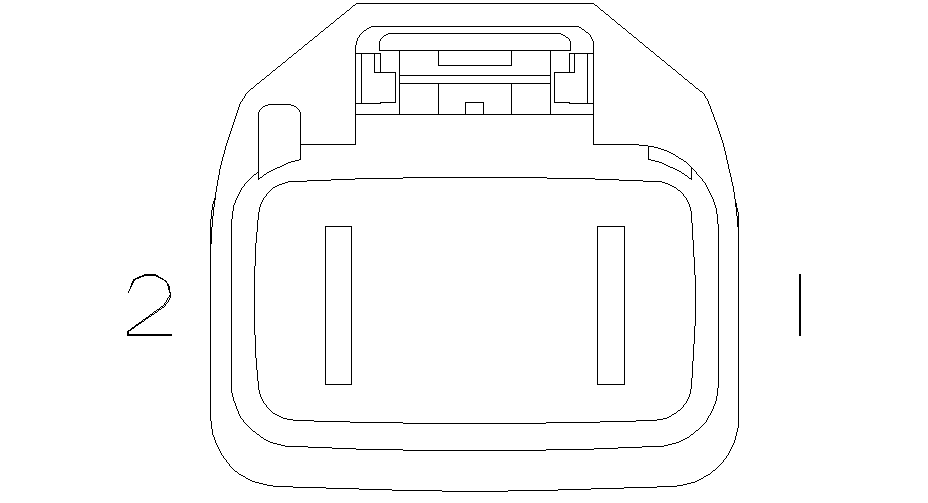

Fig 1: Motor-Power Steering Pump C1 Connector End View (Standard)
GCWD1006525Courtesy of CHRYSLER

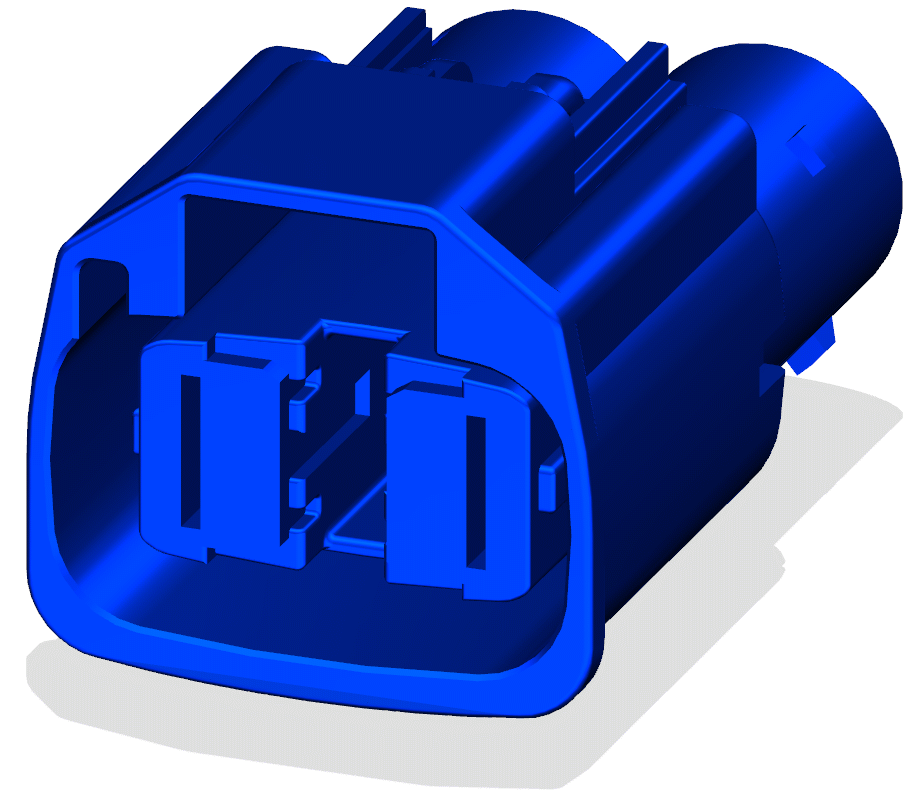

Fig 2: Motor-Power Steering Pump C1 Isometric View (Standard)
GCWD1081583Courtesy of CHRYSLER

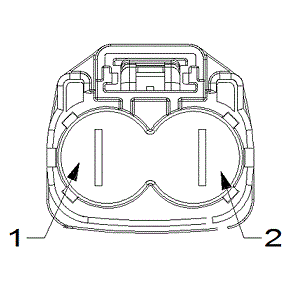

Fig 3: Motor-Power Steering Pump C1 Wire Insertion View (Standard)
GCWD1009205Courtesy of CHRYSLER

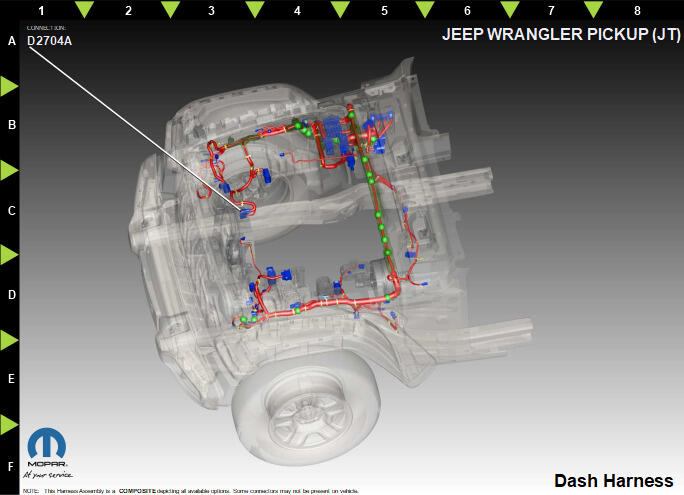

Fig 4: Motor-Power Steering Pump C1 Component Location View (Standard)
GCWD1318270Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z908 BK 1.0 GROUND N/A
2 A10 RD 1.0 FUSED B(+) N/A
