Motor-Mirror Adjust-Passenger (Standard) Connector End View (D6626B)

Harness-Family: Mirror_Pass

Color: NATURAL

Gender: FEMALE

Part Number: 16314.562.501

Part Description: Not Available

Connector No: D6626B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Motor-Mirror Adjust-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

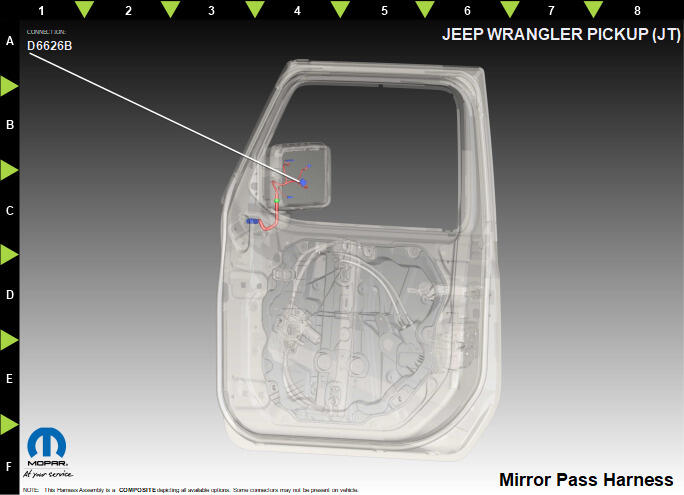

Fig 2: Motor-Mirror Adjust-Passenger Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P74	GN	0.35	PASSENGER MIRROR HORIZONTAL DRIVER	N/A
2	P76	BU	0.35	MIRROR COMMON DRIVER	N/A
3	P72	RD	0.35	PASSENGER MIRROR VERTICAL DRIVER	N/A
