Motor-Blower (Standard) Connector End View (D3017A)

Harness-Family: HVAC

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6469-40

Part Description: KAIZEN CONNECTOR SUB ASSEMBLY

Connector No: D3017A

Option: Standard

Repair Kit Part Number: 68052581AA

Cavity Count: 4

Fig 1: Motor-Blower Connector End View (Standard)
GCWD1006392Courtesy of CHRYSLER
Fig 2: Motor-Blower Isometric View (Standard)
GCWD1091407Courtesy of CHRYSLER
Fig 3: Motor-Blower Wire Insertion View (Standard)
GCWD1009645Courtesy of CHRYSLER

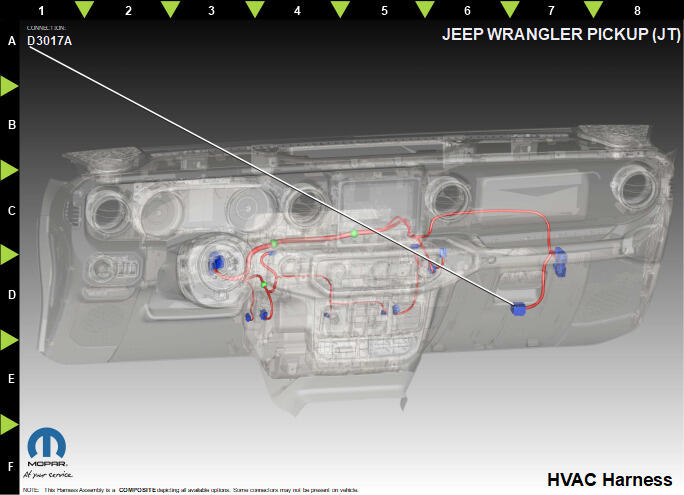

Fig 4: Motor-Blower Component Location View (Standard)
GCWD1318847Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C229 DB 0.50 BLOWER MOTOR RETURN N/A
2 Z910 BK 3.0 GROUND N/A
3 C56 DB/BU 0.50 FRONT BLOWER PWM CONTROL N/A
4 C7 DB 3.0 BLOWER MOTOR SUPPLY N/A
