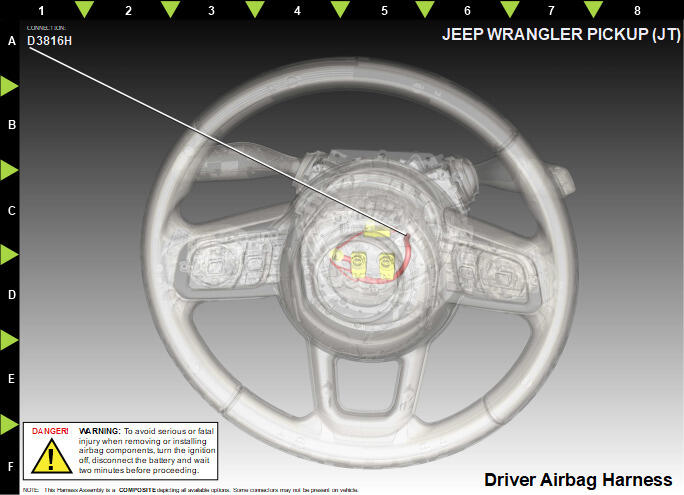

Module-Steering Column Control C5 (Standard) Connector End View (D3816H)
Harness-Family: Airbag_DAB
Color: NA
Gender: FEMALE
Part Number: HARD_WIRED
Part Description: Not Available
Connector No: D3816H
Option: Standard
Repair Kit Part Number: Not Serviced
Cavity Count: N/A
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | R43 | BU/BN | 0.80 | DRIVER SQUIB 1 LINE 2 | N/A |
| 2 | R45 | GN/OG | 0.80 | DRIVER SQUIB 1 LINE 1 | N/A |
| 3 | R61 | GN/VT | 0.80 | DRIVER SQUIB 2 LINE 2 | N/A |
| 4 | R63 | DB/WH | 0.80 | DRIVER SQUIB 2 LINE 1 | N/A |
| 5 | R67 | GY/OG | 0.80 | DRIVER SQUIB 3 LINE 2 | N/A |
| 6 | R69 | GN/YE | 0.80 | DRIVER SQUIB 3 LINE 1 | N/A |
