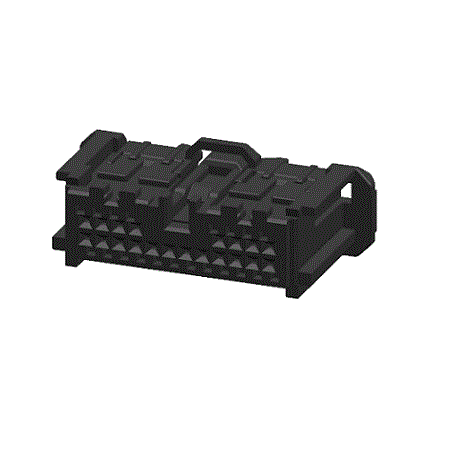

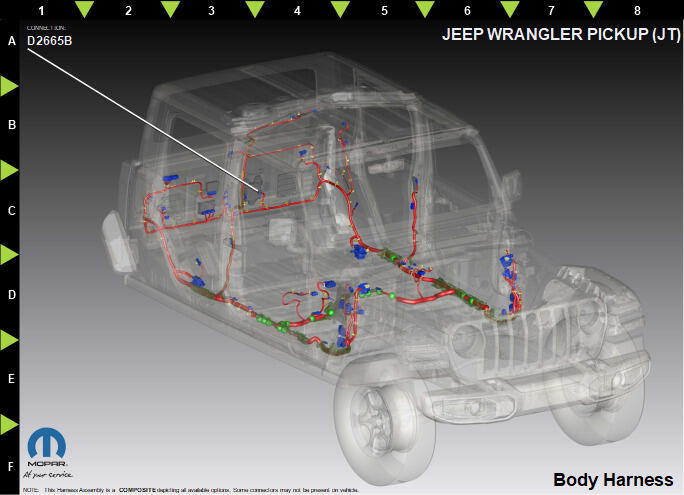

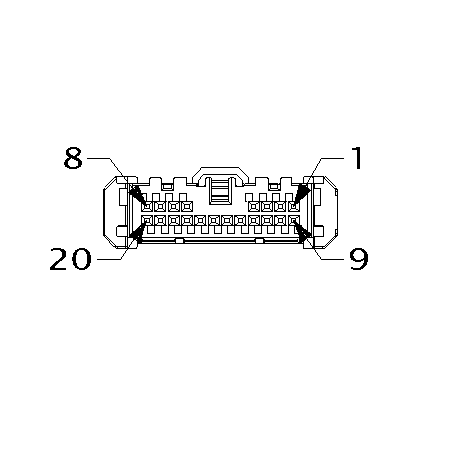

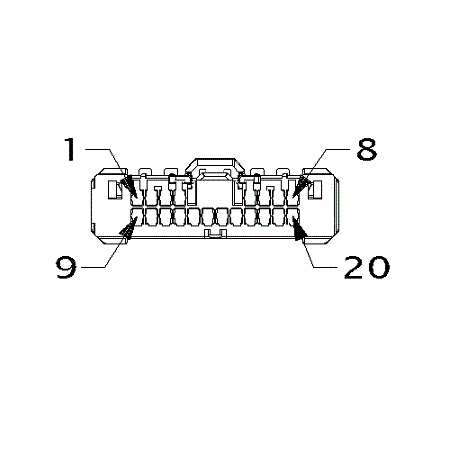

Module-Radio-Freq Hub C2 (Standard) Connector End View (D2665B)
Harness-Family: Body
Color: BLACK
Gender: FEMALE
Part Number: 2334713-1
Part Description: Not Available
Connector No: D2665B
Option: Standard
Repair Kit Part Number: 68489503AB
Cavity Count: 20
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | N0 | NA | 0 | NO CONNECT | N/A |
| 2 | N0 | NA | 0 | NO CONNECT | N/A |
| 3 | N0 | NA | 0 | NO CONNECT | N/A |
| 4 | P400 | GN/OG | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXCEPT EXPORT |
| 4 | P125 | GN/YE | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXPORT |
| 5 | D922 | GY/OG | 0.35 | PASSIVE ENTRY ANTENNA 2 SIGNAL | N/A |
| 6 | D924 | GY/YE | 0.35 | PASSIVE ENTRY ANTENNA 3 SIGNAL | N/A |
| 7 | D926 | GY/BU | 0.35 | PASSIVE ENTRY ANTENNA 4 SIGNAL | N/A |
| 8 | N0 | NA | 0 | NO CONNECT | N/A |
| 9 | N0 | NA | 0 | NO CONNECT | N/A |
| 10 | N0 | NA | 0 | NO CONNECT | N/A |
| 11 | N0 | NA | 0 | NO CONNECT | N/A |
| 12 | P124 | GN/WH | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXPORT |
| 12 | P401 | GN/VT | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXCEPT EXPORT |
| 13 | P400 | GN/OG | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXCEPT EXPORT |
| 13 | P125 | GN/YE | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXPORT |
| 14 | P401 | GN/VT | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXCEPT EXPORT |
| 14 | P124 | GN/WH | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXPORT |
| 15 | D920 | GY | 0.35 | PASSIVE ENTRY ANTENNA 1 SIGNAL | N/A |
| 16 | D921 | GY/BN | 0.35 | PASSIVE ENTRY ANTENNA 1 RETURN | N/A |
| 17 | D923 | GY/VT | 0.35 | PASSIVE ENTRY ANTENNA 2 RETURN | N/A |
| 18 | D925 | GY/DB | 0.35 | PASSIVE ENTRY ANTENNA 3 RETURN | N/A |
| 19 | D927 | GY/BG | 0.35 | PASSIVE ENTRY ANTENNA 4 RETURN | N/A |
| 20 | N0 | NA | 0 | NO CONNECT | N/A |
