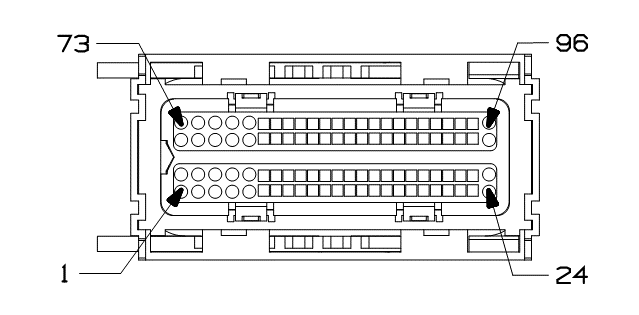

Module-Powertrain Control C1 (LHD) Connector End View (D3821A)

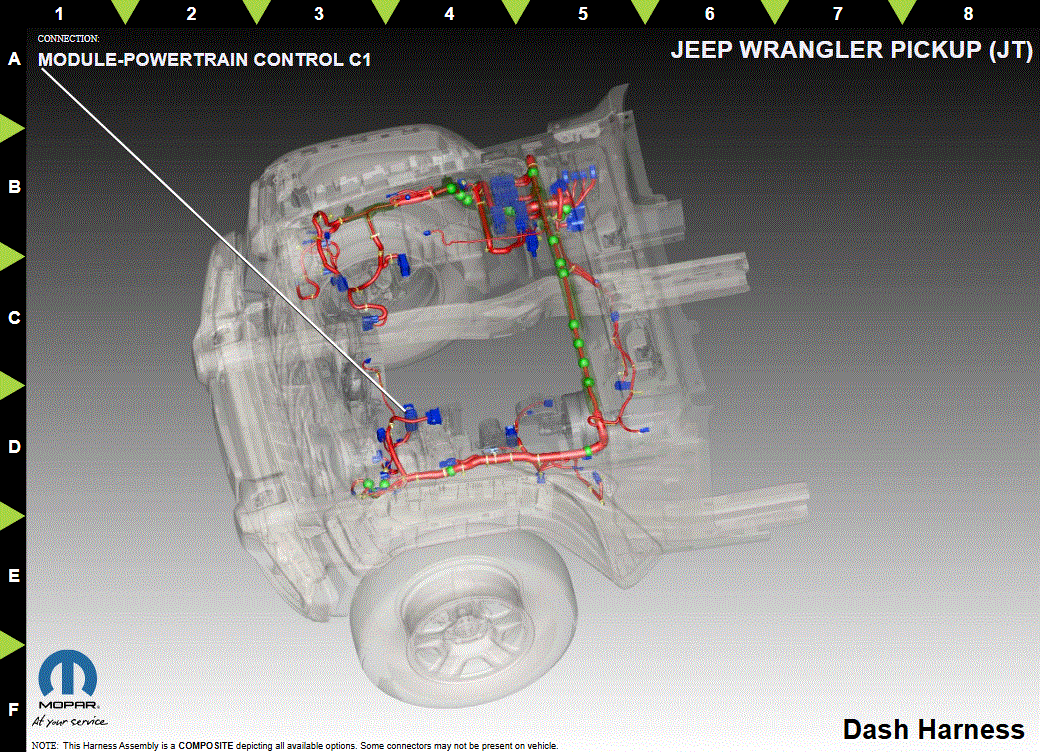

Harness-Family: Dash
Color: BLACK
Gender: FEMALE
Part Number: 2035037-1_1924939-1

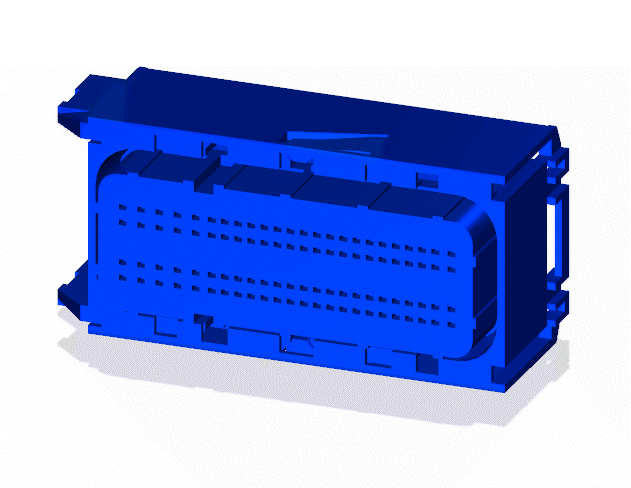

Part Description: GPEC II INSULATOR ASSEMBLY, RIGHT EXIT
Connector No: D3821A
Option: LHD
Repair Kit Part Number: 68148108AA
Cavity Count: 96
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | N0 | NA | 0 | NO CONNECT | N/A |
| 2 | N0 | NA | 0 | NO CONNECT | N/A |
| 3 | N0 | NA | 0 | NO CONNECT | N/A |
| 4 | N0 | NA | 0 | NO CONNECT | N/A |
| 5 | N0 | NA | 0 | NO CONNECT | N/A |
| 6 | N0 | NA | 0 | NO CONNECT | N/A |
| 7 | N0 | NA | 0 | NO CONNECT | N/A |
| 8 | N0 | NA | 0 | NO CONNECT | N/A |
| 9 | N0 | NA | 0 | NO CONNECT | N/A |
| 10 | N0 | NA | 0 | NO CONNECT | N/A |
| 11 | N0 | NA | 0 | NO CONNECT | N/A |
| 12 | N0 | NA | 0 | NO CONNECT | N/A |
| 13 | N0 | NA | 0 | NO CONNECT | N/A |
| 14 | N0 | NA | 0 | NO CONNECT | N/A |
| 15 | N0 | NA | 0 | NO CONNECT | N/A |
| 16 | N0 | NA | 0 | NO CONNECT | N/A |
| 17 | T17 | YE/VT | 0.35 | CLUTCH INTERLOCK START CONTROL | 6-SPEED MANUAL TRANS |
| 17 | N0 | NA | 0 | NO CONNECT | EXCEPT 6-SPEED MANUAL TRANS |
| 18 | N0 | NA | 0 | NO CONNECT | N/A |
| 19 | N0 | NA | 0 | NO CONNECT | N/A |
| 20 | N0 | NA | 0 | NO CONNECT | N/A |
| 21 | K804 | BN/GN | 0.35 | STOP START NEUTRAL SW SIG | 6-SPEED MANUAL TRANS |
| 21 | N0 | NA | 0 | NO CONNECT | EXCEPT 6-SPEED MANUAL TRANS |
| 22 | K181 | BN/YE | 0.35 | FUEL PRESSURE SIGNAL | N/A |
| 23 | F942 | PK/VT | 0.50 | FUSED IGNITION SWITCH OUTPUT (RUN-START) | N/A |
| 24 | N0 | NA | 0 | NO CONNECT | N/A |
| 25 | N0 | NA | 0 | NO CONNECT | N/A |
| 26 | N0 | NA | 0 | NO CONNECT | N/A |
| 27 | N0 | NA | 0 | NO CONNECT | N/A |
| 28 | N0 | NA | 0 | NO CONNECT | N/A |
| 29 | N0 | NA | 0 | NO CONNECT | N/A |
| 30 | N0 | NA | 0 | NO CONNECT | N/A |
| 31 | N0 | NA | 0 | NO CONNECT | N/A |
| 32 | N0 | NA | 0 | NO CONNECT | N/A |
| 33 | D28 | YE | 0.35 | CAN C (-) | N/A |
| 34 | N0 | NA | 0 | NO CONNECT | N/A |
| 35 | N0 | NA | 0 | NO CONNECT | N/A |
| 36 | N0 | NA | 0 | NO CONNECT | N/A |
| 37 | N0 | NA | 0 | NO CONNECT | N/A |
| 38 | N0 | NA | 0 | NO CONNECT | N/A |
| 39 | N0 | NA | 0 | NO CONNECT | N/A |
| 40 | N0 | NA | 0 | NO CONNECT | N/A |
| 41 | N0 | NA | 0 | NO CONNECT | N/A |
| 42 | N0 | NA | 0 | NO CONNECT | N/A |
| 43 | N0 | NA | 0 | NO CONNECT | N/A |
| 44 | C18 | BU/BN | 0.50 | A/C PRESSURE SIGNAL | N/A |
| 45 | N0 | NA | 0 | NO CONNECT | N/A |
| 46 | K806 | DB/BN | 0.50 | HOOD AJAR SWITCH 2 | N/A |
| 47 | N0 | NA | 0 | NO CONNECT | N/A |
| 48 | K859 | BN/DB | 0.50 | 5 VOLT SUPPLY | N/A |
| 49 | N0 | NA | 0 | NO CONNECT | N/A |
| 50 | N0 | NA | 0 | NO CONNECT | N/A |
| 51 | N0 | NA | 0 | NO CONNECT | N/A |
| 52 | Z909 | BK/GN | 1.0 | GROUND | N/A |
| 53 | Z909 | BK/GN | 1.0 | GROUND | N/A |
| 54 | K917 | BN/BG | 0.35 | SENSOR GROUND | N/A |
| 55 | N0 | NA | 0 | NO CONNECT | N/A |
| 56 | N0 | NA | 0 | NO CONNECT | N/A |
| 57 | D27 | BG/WH | 0.35 | CAN C (+) | N/A |
| 58 | N0 | NA | 0 | NO CONNECT | N/A |
| 59 | N0 | NA | 0 | NO CONNECT | N/A |
| 60 | N0 | NA | 0 | NO CONNECT | N/A |
| 61 | N12 | DB/GN | 0.35 | FPCM PWM FEEDBACK | N/A |
| 62 | N0 | NA | 0 | NO CONNECT | N/A |
| 63 | N0 | NA | 0 | NO CONNECT | N/A |
| 64 | N0 | NA | 0 | NO CONNECT | N/A |
| 65 | N0 | NA | 0 | NO CONNECT | N/A |
| 66 | N0 | NA | 0 | NO CONNECT | EXCEPT 6-SPEED MANUAL TRANS |
| 66 | T119 | YE | 0.35 | CLUTCH POSITION SIGNAL | 6-SPEED MANUAL TRANS |
| 67 | K400 | BN/VT | 0.75 | APP SENSOR GROUND 2 | N/A |
| 68 | K167 | BN/YE | 0.75 | APP SENSOR GROUND 1 | N/A |
| 69 | K854 | VT/BN | 0.35 | 5 VOLT SUPPLY | N/A |
| 70 | K108 | VT/GY | 0.35 | ESIM SIGNAL | N/A |
| 71 | K8 | VT/BG | 0.35 | STARTER RELAY CONTROL | N/A |
| 72 | Z909 | BK/GN | 1.0 | GROUND | N/A |
| 73 | N9 | DB | 0.50 | FUEL PUMP RELAY CONTROL | N/A |
| 74 | F342 | BN/WH | 1.0 | FUSED ASD RELAY OUTPUT | N/A |
| 75 | F342 | BN/WH | 1.0 | FUSED ASD RELAY OUTPUT | N/A |
| 76 | F342 | BN/WH | 1.0 | FUSED ASD RELAY OUTPUT | N/A |
| 77 | T110 | DG/YE | 0.50 | VACUUM PUMP RELAY CONTROL | N/A |
| 78 | N0 | NA | 0 | NO CONNECT | N/A |
| 79 | C13 | BU/OG | 0.35 | A/C CLUTCH CONTROL | N/A |
| 80 | K51 | BN/WH | 0.75 | ASD RELAY CONTROL | N/A |
| 81 | N0 | NA | 0 | NO CONNECT | N/A |
| 82 | K173 | BN/VT | 0.50 | RADIATOR FAN CONTROL SIGNAL | N/A |
| 83 | N11 | DB/BG | 0.35 | FPCM PWM CONTROL | N/A |
| 84 | N0 | NA | 0 | NO CONNECT | N/A |
| 85 | N0 | NA | 0 | NO CONNECT | N/A |
| 86 | T122 | DG | 0.35 | GEAR POSITION SENSOR SIGNAL | 6-SPEED MANUAL TRANS |
| 86 | N0 | NA | 0 | NO CONNECT | EXCEPT 6-SPEED MANUAL TRANS |
| 87 | N0 | NA | 0 | NO CONNECT | N/A |
| 88 | N7 | DB/OG | 0.35 | FUEL TANK PRESSURE SIGNAL | N/A |
| 89 | N0 | NA | 0 | NO CONNECT | N/A |
| 90 | N0 | NA | 0 | NO CONNECT | N/A |
| 91 | K29 | WH/BN | 0.75 | APP SIGNAL 2 | N/A |
| 92 | K23 | BN/WH | 0.75 | APP SIGNAL 1 | N/A |
| 93 | K852 | GY/BU | 0.75 | 5 VOLT SUPPLY | N/A |
| 94 | K52 | DB/WH | 0.50 | EVAP PURGE CONTROL | N/A |
| 95 | N0 | NA | 0 | NO CONNECT | N/A |
| 96 | A106 | BU/RD | 1.0 | FUSED B(+) | N/A |
