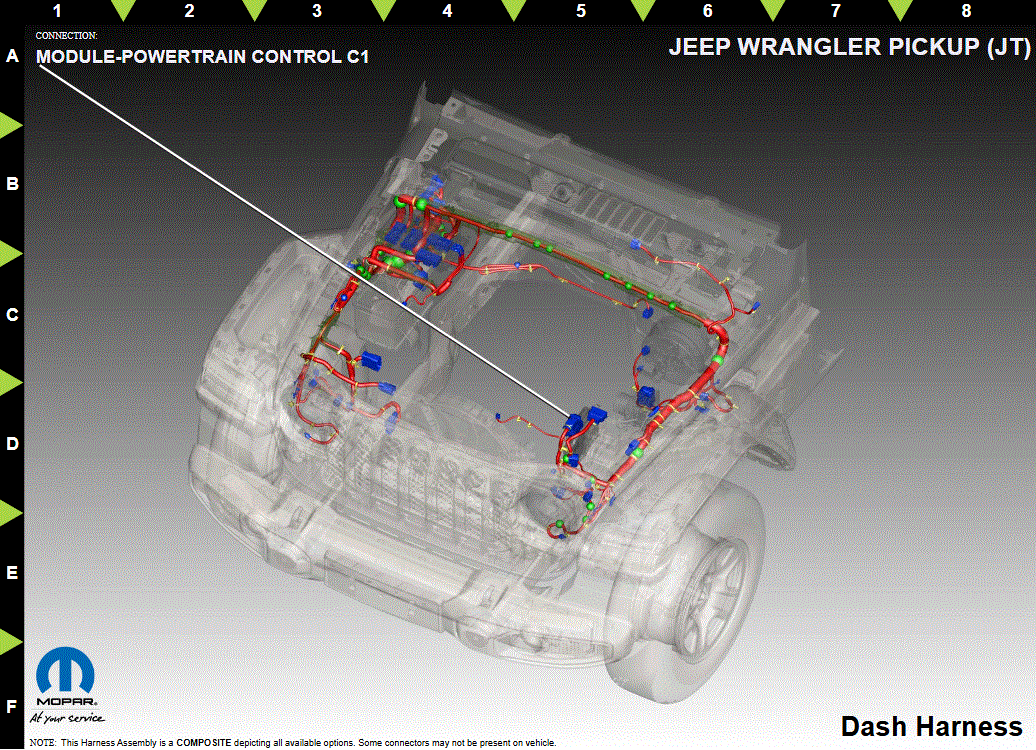

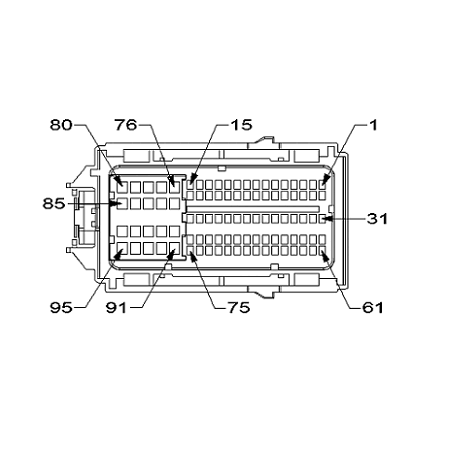

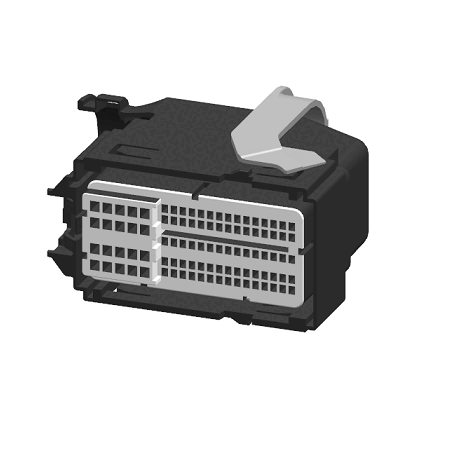

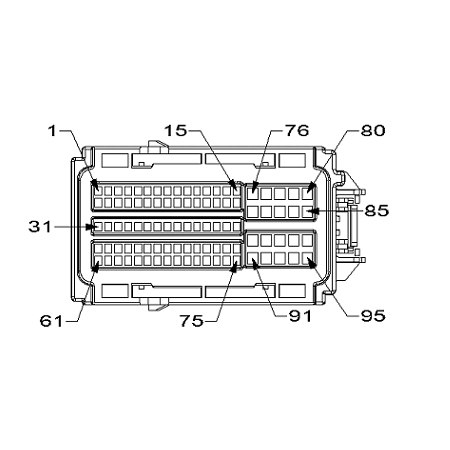

Module-Powertrain Control C1 (GPEC5) Connector End View (D3821A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 34992-0906_34992-5001

Part Description: Not Available

Connector No: D3821A

Option: GPEC5

Repair Kit Part Number: 68508809AA

Cavity Count: 95

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K173	BN/VT	0.50	RADIATOR FAN CONTROL SIGNAL	N/A
2	T753	DG/YE	0.50	IGNITION CRANK SENSE	N/A
3	A804	RD/VT	0.75	GEN SENSE	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	K108	VT/GY	0.35	ESIM SIGNAL	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	K859	BN/DB	0.50	5 VOLT SUPPLY	N/A
10	D27	BG/WH	0.35	CAN C (+)	N/A
11	D28	YE	0.35	CAN C (-)	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N12	DB/GN	0.35	FPCM PWM FEEDBACK	N/A
23	N0	NA	0	NO CONNECT	N/A
24	N0	NA	0	NO CONNECT	N/A
25	N0	NA	0	NO CONNECT	N/A
26	N0	NA	0	NO CONNECT	N/A
27	K21	DB/GN	0.50	IAT SIGNAL	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	K51	BN/WH	0.75	ASD RELAY CONTROL	N/A
32	K23	BN/WH	0.75	APP SIGNAL 1	N/A
33	K167	BN/YE	0.75	APP SENSOR GROUND 1	N/A
34	K29	WH/BN	0.75	APP SIGNAL 2	N/A
35	K400	BN/VT	0.75	APP SENSOR GROUND 2	N/A
36	K852	GY/BU	0.75	5 VOLT SUPPLY	N/A
37	C18	BU/BN	0.50	A/C PRESSURE SIGNAL	N/A
38	K917	BN/BG	0.35	SENSOR GROUND	N/A
39	K854	VT/BN	0.35	5 VOLT SUPPLY	N/A
40	K181	BN/YE	0.35	FUEL PRESSURE SIGNAL	N/A
41	N7	DB/OG	0.35	FUEL TANK PRESSURE SIGNAL	N/A
42	K806	DB/BN	0.50	HOOD AJAR SWITCH 2	N/A
43	K141	DB/YE	0.75	O2 1/2 SIGNAL	N/A
44	K243	BN	0.75	O2 2/2 SIGNAL	N/A
45	K904	DB/DG	0.50	O2 RETURN (DOWNSTREAM)	N/A
46	N0	NA	0	NO CONNECT	N/A
47	N0	NA	0	NO CONNECT	N/A
48	T762	DG/YE	0.50	PCR CONTROL RELAY CONTROL	N/A
49	N0	NA	0	NO CONNECT	N/A
50	F942	PK/VT	0.50	FUSED IGNITION SWITCH OUTPUT (RUN-START)	N/A
51	N0	NA	0	NO CONNECT	N/A
52	N0	NA	0	NO CONNECT	N/A
53	N0	NA	0	NO CONNECT	N/A
54	N0	NA	0	NO CONNECT	N/A
55	N0	NA	0	NO CONNECT	N/A
56	N0	NA	0	NO CONNECT	N/A
57	N0	NA	0	NO CONNECT	N/A
58	N0	NA	0	NO CONNECT	N/A
59	N0	NA	0	NO CONNECT	N/A
60	N0	NA	0	NO CONNECT	N/A
61	N0	NA	0	NO CONNECT	N/A
62	K52	DB/WH	0.50	EVAP PURGE CONTROL	N/A
63	C13	BU/OG	0.35	A/C CLUTCH CONTROL	N/A
64	T110	DG/YE	0.50	VACUUM PUMP RELAY CONTROL	N/A
65	N9	DB	0.50	FUEL PUMP RELAY CONTROL	N/A
66	N0	NA	0	NO CONNECT	N/A
67	N0	NA	0	NO CONNECT	N/A
68	N0	NA	0	NO CONNECT	N/A
69	N0	NA	0	NO CONNECT	N/A
70	N0	NA	0	NO CONNECT	N/A
71	N0	NA	0	NO CONNECT	N/A
72	N11	DB/BG	0.35	FPCM PWM CONTROL	N/A
73	N0	NA	0	NO CONNECT	N/A
74	N0	NA	0	NO CONNECT	N/A
75	N0	NA	0	NO CONNECT	N/A
76	K8	VT/BG	0.35	STARTER RELAY CONTROL	N/A
77	N0	NA	0	NO CONNECT	N/A
78	N0	NA	0	NO CONNECT	N/A
79	N0	NA	0	NO CONNECT	N/A
80	K199	BN/VT	0.75	O2 2/1 HEATER CONTROL	N/A
81	N0	NA	0	NO CONNECT	N/A
82	Z909	BK/GN	1.0	GROUND	N/A
83	Z909	BK/GN	1.0	GROUND	N/A
84	Z909	BK/GN	1.0	GROUND	N/A
85	K99	BN/GN	0.50	O2 1/1 HEATER CONTROL	N/A
86	N0	NA	0	NO CONNECT	N/A
87	A106	BU/RD	1.0	FUSED B(+)	N/A
88	F342	BN/WH	1.0	FUSED ASD RELAY OUTPUT	N/A
89	F342	BN/WH	1.0	FUSED ASD RELAY OUTPUT	N/A
90	F342	BN/WH	1.0	FUSED ASD RELAY OUTPUT	N/A
91	N0	NA	0	NO CONNECT	N/A
92	N0	NA	0	NO CONNECT	N/A
93	K20	BN/GY	0.75	GEN FIELD CONTROL	N/A
94	K299	BN/WH	0.75	O2 1/2 HEATER CONTROL	N/A
95	K399	BN/GY	0.75	O2 2/2 HEATER CONTROL	N/A
