Module-Park Assist C3 (Standard) Connector End View (D3867C)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 7283-9068-90

Part Description: KAIZEN SUB ASSEMBLY (KEYWAY OPTION E)

Connector No: D3867C

Option: Standard

Repair Kit Part Number: 68030130AA

Cavity Count: 14

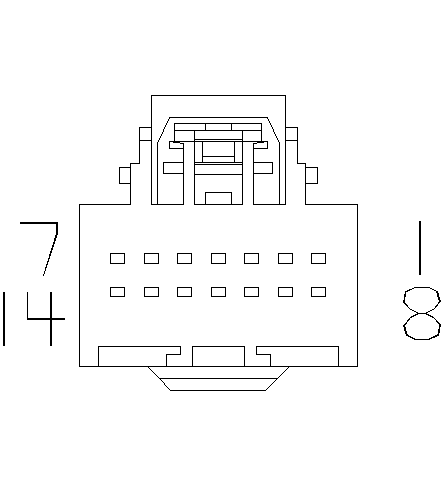

Fig 1: Module-Park Assist C3 Connector End View (Standard)

Courtesy of CHRYSLER

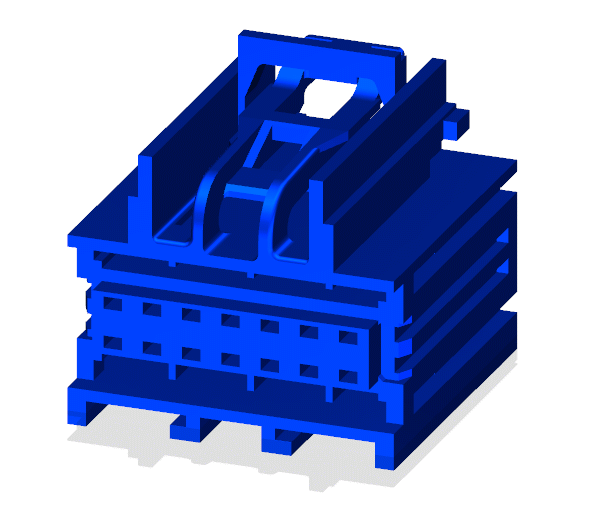

Fig 2: Module-Park Assist C3 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Park Assist C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

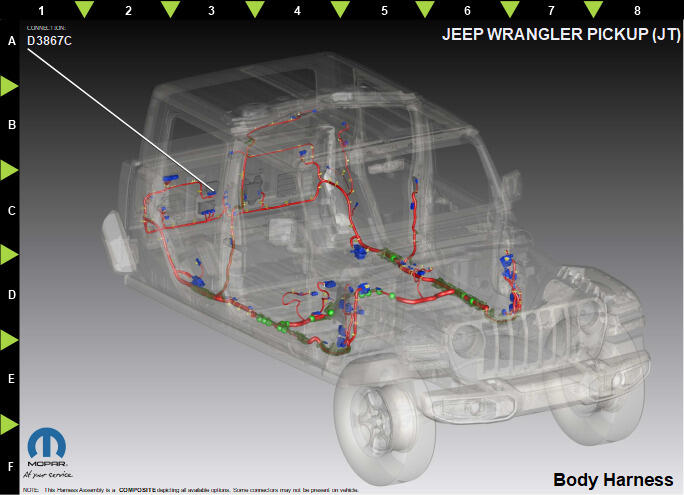

Fig 4: Module-Park Assist C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X702	GY/BU	0.75	FRONT PARK ASSIST SENSOR SUPPLY	N/A
2	N0	NA	0	NO CONNECT	N/A
3	D702	WH/YE	0.75	PARK ASSIST SIGNAL 1	N/A
4	D705	WH/OG	0.75	PARK ASSIST SIGNAL 2	N/A
5	D706	WH/BG	0.75	PARK ASSIST SIGNAL 3	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	D709	WH/BN	0.75	PARK ASSIST SIGNAL 6	N/A
11	D708	WH/BU	0.75	PARK ASSIST SIGNAL 5	N/A
12	D707	WH/GN	0.75	PARK ASSIST SIGNAL 4	N/A
13	X751	GY	0.75	FRONT PARK ASSIST SENSOR GROUND	N/A
14	N0	NA	0	NO CONNECT	N/A
