Module-Park Assist C2 (Standard) Connector End View (D3867B)

Harness-Family: Body

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-9029-40

Part Description: KAIZEN 0.64 SYSTEM UNSEALED

Connector No: D3867B

Option: Standard

Repair Kit Part Number: 68080558AA

Cavity Count: 8

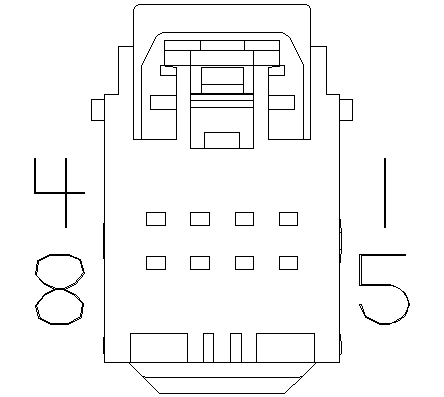

Fig 1: Module-Park Assist C2 Connector End View (Standard)
GCWD1006422Courtesy of CHRYSLER
Fig 2: Module-Park Assist C2 Isometric View (Standard)
GCWD1092061Courtesy of CHRYSLER

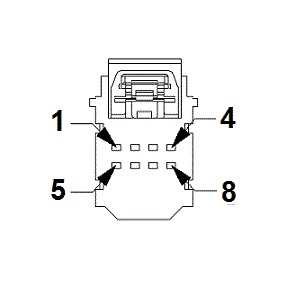

Fig 3: Module-Park Assist C2 Wire Insertion View (Standard)
GCWD1008178Courtesy of CHRYSLER

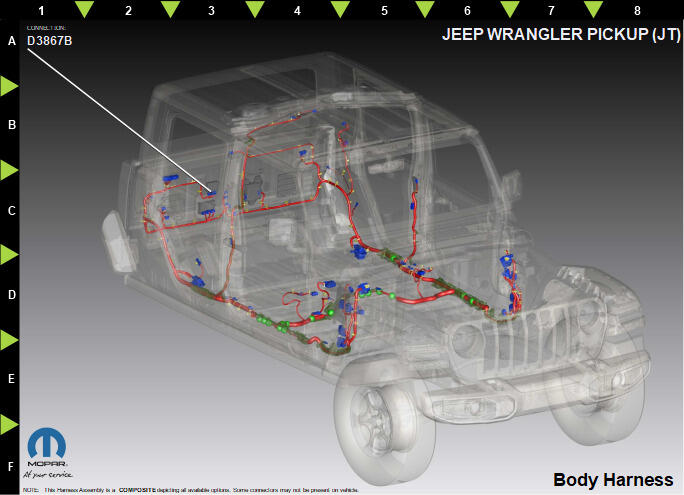

Fig 4: Module-Park Assist C2 Component Location View (Standard)
GCWD1318624Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D701 WH/BU 0.35 PARK ASSIST SIGNAL 8 N/A
2 D703 WH/OG 0.35 PARK ASSIST SIGNAL 9 N/A
3 D704 WH/DG 0.35 PARK ASSIST SIGNAL 10 N/A
4 X700 GY/OG 0.35 REAR PARK ASSIST SENSOR SUPPLY N/A
5 D710 WH 0.35 PARK ASSIST SIGNAL 11 N/A
6 N0 NA 0 NO CONNECT N/A
7 N0 NA 0 NO CONNECT N/A
8 X750 GY/BU 0.35 REAR PARK ASSIST SENSOR GROUND N/A
