Module-Park Assist C1 (Standard) Connector End View (D3867A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 7283-9052-30

Part Description: YESC KAIZEN SUB- ASSEMBLY

Connector No: D3867A

Option: Standard

Repair Kit Part Number: 68080557AA

Cavity Count: 12

Fig 1: Module-Park Assist C1 Connector End View (Standard)
GCWD1016838Courtesy of CHRYSLER
Fig 2: Module-Park Assist C1 Isometric View (Standard)
GCWD1080128Courtesy of CHRYSLER
Fig 3: Module-Park Assist C1 Wire Insertion View (Standard)
GCWD1009136Courtesy of CHRYSLER

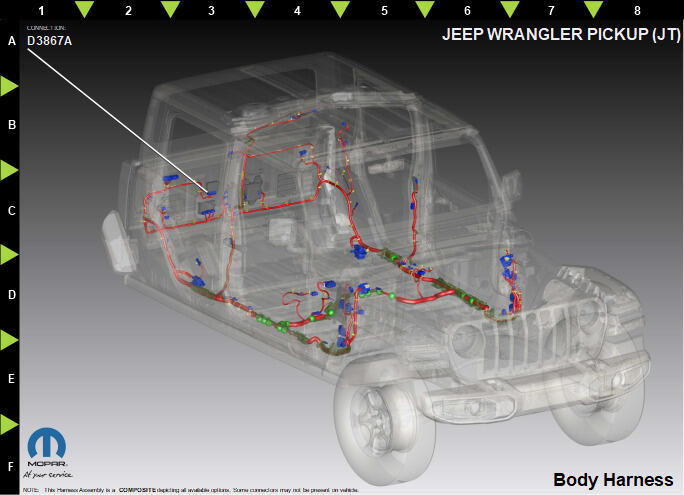

Fig 4: Module-Park Assist C1 Component Location View (Standard)
GCWD1318623Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F916 PK/BU 0.50 FUSED IGNITION RUN/START N/A
2 N0 NA 0 NO CONNECT N/A
3 N0 NA 0 NO CONNECT N/A
4 N0 NA 0 NO CONNECT N/A
5 N0 NA 0 NO CONNECT N/A
6 D77 VT 0.35 CAN C (+) N/A
7 Z916 BK/YE 0.35 GROUND N/A
8 N0 NA 0 NO CONNECT N/A
9 N0 NA 0 NO CONNECT N/A
10 N0 NA 0 NO CONNECT N/A
11 N0 NA 0 NO CONNECT N/A
12 D78 YE 0.35 CAN C (-) N/A
