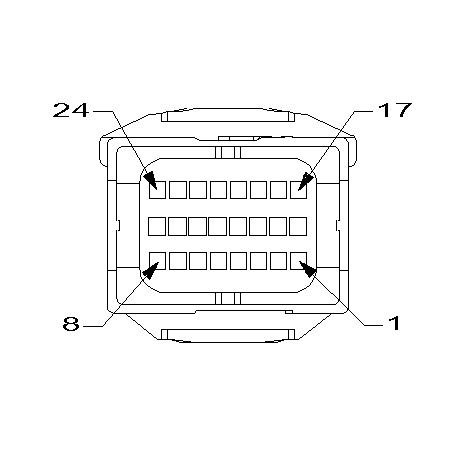

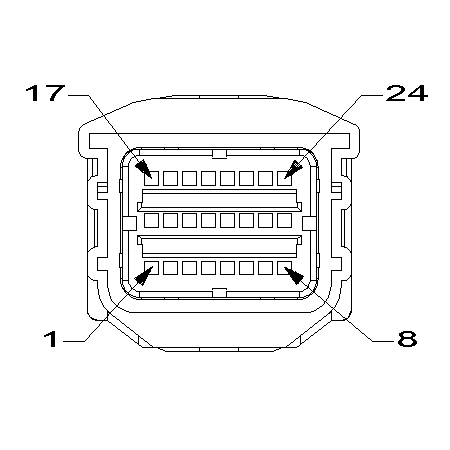

Module-Occupant Restraint Controller C1 (Standard) Connector End View (D3834A)

Harness-Family: IP

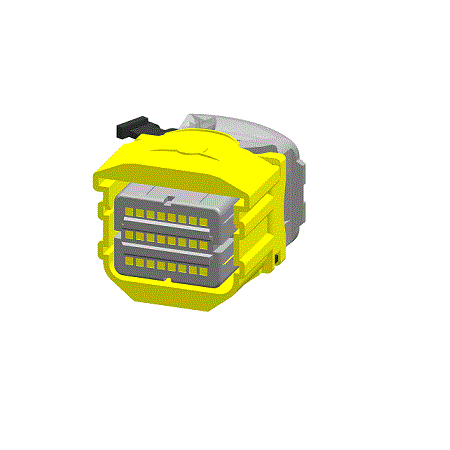

Color: YELLOW

Gender: FEMALE

Part Number: 33380852_13938271

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: 68496363AB

Cavity Count: 24

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R61	GN/VT	0.75	DRIVER SQUIB 2 LINE 2	EXCEPT EXPORT
1	N0	NA	0	NO CONNECT	EXPORT
2	R63	DB/WH	0.75	DRIVER SQUIB 2 LINE 1	EXCEPT EXPORT
2	N0	NA	0	NO CONNECT	EXPORT
3	R45	GN/OG	0.75	DRIVER SQUIB 1 LINE 1	N/A
4	R43	BU/BN	0.75	DRIVER SQUIB 1 LINE 2	N/A
5	R42	DG/BN	0.50	PASSENGER SQUIB 1 LINE 2	N/A
6	R44	GY/OG	0.50	PASSENGER SQUIB 1 LINE 1	N/A
7	R64	VT/WH	0.50	PASSENGER SQUIB 2 LINE 1	N/A
8	R62	BU/VT	0.50	PASSENGER SQUIB 2 LINE 2	N/A
9	F201	PK/OG	0.75	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
10	R41	BU/OG	0.75	AIRBAG DEPLOYMENT SIGNAL	EMERGENCY RESPONSE
10	N0	NA	0	NO CONNECT	EXCEPT EMERGENCY RESPONSE
11	R81	BU/WH	0.75	LEFT FRONT IMPACT SENSOR GROUND	N/A
12	R79	BU/VT	0.75	LEFT FRONT IMPACT SENSOR SIGNAL	N/A
13	R80	VT/BU	0.75	RIGHT FRONT IMPACT SENSOR SIGNAL	N/A
14	R82	WH/BU	0.75	RIGHT FRONT IMPACT SENSOR GROUND	N/A
15	D11	YE/DB	0.35	CAN C (+)	N/A
16	D12	YE	0.35	CAN C (-)	N/A
17	F100	PK/VT	0.75	FUSED IGNITION RUN CONTROL OUTPUT	N/A
18	R168	GN/WH	0.50	AIRBAG OFF LAMP PASSENGER	N/A
19	Z913	BK	0.50	GROUND	N/A
20	N0	NA	0	NO CONNECT	EXCEPT EXPORT
20	R167	DB	0.50	AIRBAG ON LAMP PASSENGER	EXPORT
21	N0	NA	0	NO CONNECT	EXPORT
21	R67	GY/OG	0.75	DRIVER SQUIB 3 LINE 2	EXCEPT EXPORT
22	R69	GN/YE	0.75	DRIVER SQUIB 3 LINE 1	EXCEPT EXPORT
22	N0	NA	0	NO CONNECT	EXPORT
23	R68	BU/YE	0.50	PASSENGER SQUIB 3 LINE 1	EXCEPT EXPORT
23	N0	NA	0	NO CONNECT	EXPORT
24	N0	NA	0	NO CONNECT	EXPORT
24	R66	GY/DG	0.50	PASSENGER SQUIB 3 LINE 2	EXCEPT EXPORT
