Module-Occupant Classification (Standard) Connector End View (D3875A)

Harness-Family: Seat_Cushion_Pass

Color: BLACK

Gender: FEMALE

Part Number: 31403-6110

Part Description: USCAR CONNECTOR -SINGLE ROW ASSY W/ CPA

Connector No: D3875A

Option: Standard

Repair Kit Part Number: 68032645AA

Cavity Count: 6

Fig 1: Module-Occupant Classification Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Occupant Classification Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Occupant Classification Wire Insertion View (Standard)

Courtesy of CHRYSLER

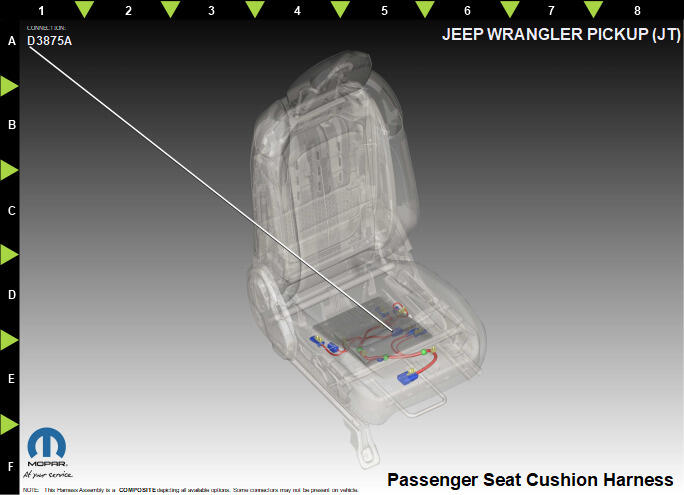

Fig 4: Module-Occupant Classification Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F915	PK	0.50	FUSED IGNITION RUN/START	N/A
2	D13	YE/BU	0.35	CAN C (+)	N/A
3	D14	YE	0.35	CAN C (-)	N/A
4	Z917	BK	0.50	GROUND	N/A
5	R86	GN/BU	0.50	PASSENGER SEAT BELT FORCE SENSOR SUPPLY	N/A
6	R986	GN/BN	0.50	PASSENGER SEAT BELT FORCE SENSOR RETURN	N/A
