Module-HVAC C2 (Standard) Connector End View (D3828B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 13782037

Part Description: Not Available

Connector No: D3828B

Option: Standard

Repair Kit Part Number: 68496362AA

Cavity Count: 8

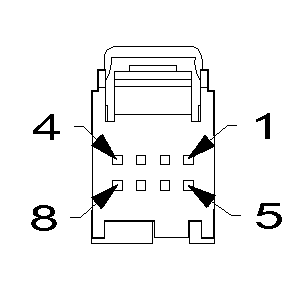

Fig 1: Module-Hvac C2 Connector End View (Standard)

Courtesy of CHRYSLER

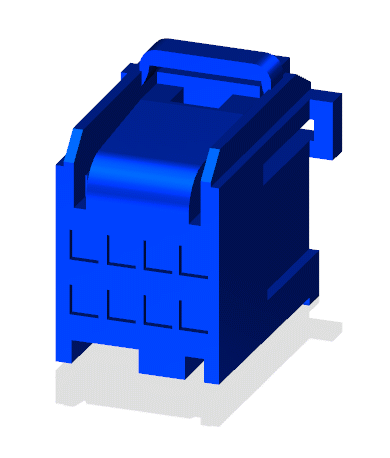

Fig 2: Module-Hvac C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Hvac C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Hvac C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L24	WH/VT	0.35	AUTO HEADLAMPS SIGNAL	N/A
2	G939	VT/DB	0.35	SENSOR GROUND	N/A
3	G39	VT/BU	0.35	SUN SENSOR SIGNAL 1	N/A
4	G139	VT/OG	0.35	SUN SENSOR SIGNAL 2	N/A
5	C36	BU/BN	0.35	SNSR IN CAR TEMP SIG	N/A
6	C37	BU/OG	0.35	SNSR IN CAR TEMP RTN	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
