Module-Heater Control (Standard) Connector End View (D2845A)

Harness-Family: Chassis_RT

Color: BROWN

Gender: FEMALE

Part Number: 33504496

Part Description: Not Available

Connector No: D2845A

Option: Standard

Repair Kit Part Number: 68528076AA

Cavity Count: 11

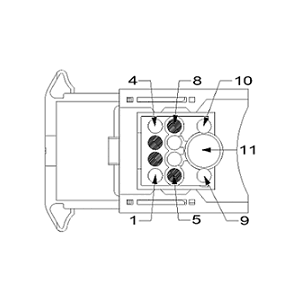

Fig 1: Module-Heater Control Connector End View (Standard)

Courtesy of CHRYSLER

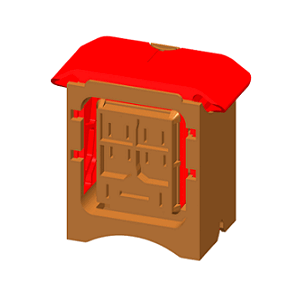

Fig 2: Module-Heater Control Isometric View (Standard)

Courtesy of CHRYSLER

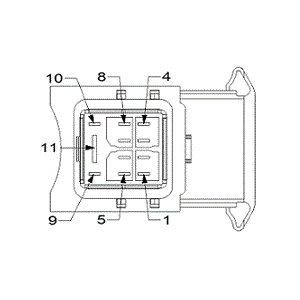

Fig 3: Module-Heater Control Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Heater Control Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K403	DB	1.0	DEF TANK HEATER SUPPLY	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	K404	BN	1.0	DEF LINE HEATER SUPPLY	N/A
5	N0	NA	0	NO CONNECT	N/A
6	F343	BN/YE	2.0	FUSED ASD RELAY OUTPUT	N/A
7	Z906	BK	2.0	GROUND	N/A
8	N0	NA	0	NO CONNECT	N/A
9	D468	GY/WH	0.50	PRIVATE CAN (-)	N/A
10	D469	GY	0.50	PRIVATE CAN (+)	N/A
11	A914	RD	5.0	FUSED B(+)	N/A
